Resource Usage Map is a web application that comes with Teamwork. Resource Usage Map allows you to create graphical representations of Teamwork Cloud project usages, analyze dependencies among projects in the Teamwork Cloud repository, and identify potentially problematic usage areas.

You can open Resource Usage Map right from your modeling tool as described below.


To open Resource Usage Map

  1. Open a server project.
  2. In the main menu, select Collaborate > Open in Resource Usage Map.


After completing the steps above, the project usage map is opened in a web browser.

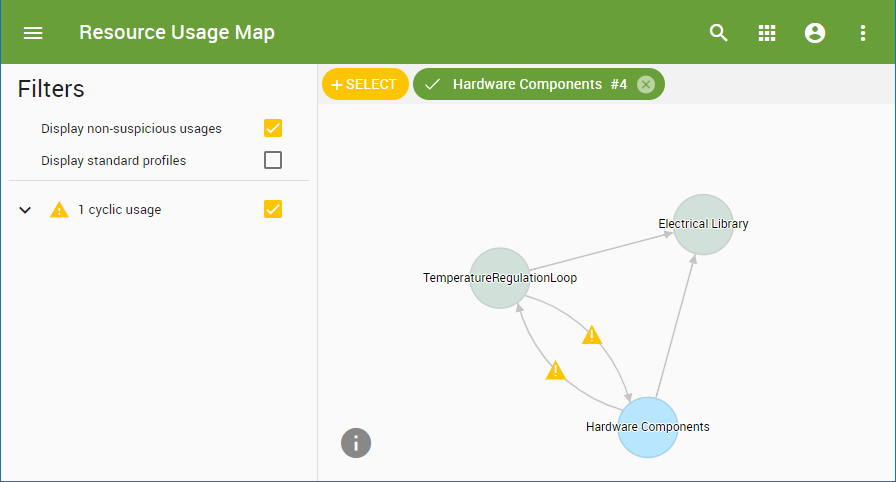

Example of a resource usage map.

If you work with a server that is of an earlier version than your modeling tool, you may need to specify the Web Application Platform URL for the Resource Usage Map functionality to work.


To specify Web Application Platform URL

  1. In the main menu, select Options > Environment.
  2. On the left side of the Environment Options dialog, select the Collaboration option group.
  3. Specify the value of the Web Application Platform URL option.
