Importing an OWL ontology into a non-CCM project

AVAILABLE FROM 18.0 SP13

If you are working in a non-CCM project, and you want to import an OWL ontology file (File > Import From > OWL Ontology File), a message dialog appears. The dialog will inform you that the Concept Modeling Profile is required for import, and it will ask you whether or not you want to load it.

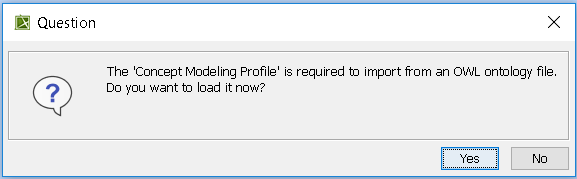

Message dialog asking if you want to load the Concept Modeling Profile.

If you click Yes, the modeling tool will load the profile.

CCM 'Default' Symbol Style

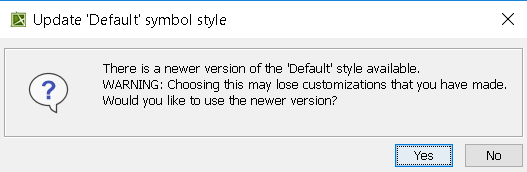

Cameo Concept Modeler comes with its own Default Styles. This message dialog may appear after the Question dialog shown previously. The dialog simply asks whether you would like to load CCM default styles. Note the Warning message in the dialog. The message is there for projects that are really specific and may contain nomenclature that CCM does not recognize.

Click Yes or No, according to your needs.

If you click No, the following ERROR message appears in the Notification Window.
