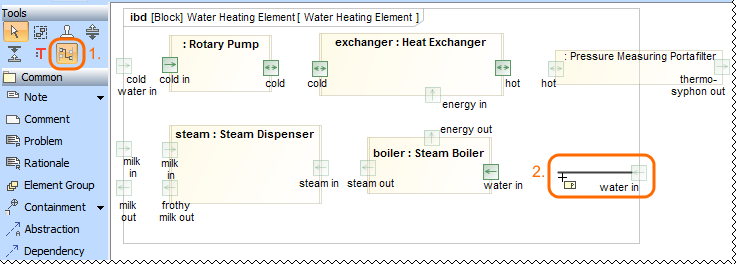

Modeling Tools 2026x SysML v1 modeling Modeling structure with Blocks Connecting Blocks in SysML Internal Block Diagram Current: Enforce Ports Compatibility mode Enforce Ports Compatibility mode Enforce Ports Compatibility mode restricts connections and persists clearly visible only compatible ports (Flow Port, Full Port, Proxy Port) in SysML Internal Block Diagram and Constraint Parameters in SysML Parametric Diagram. Non compatible elements become transparent.To use Enforce Ports Compatibility modeSwitch to Enforce Ports Compatibility mode.Create the connection between ports (Flow Port, Full Port, Proxy Port) or Constraint Parameters.All ports and Constraint Parameters that are compatible to connect persist clearly visible. ×
