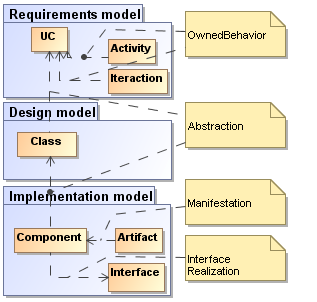

The forward traceability ensures that all specified artifacts are covered by elements from the lower abstraction level.
Property Name
Description
Applied for
Reference through...
Value elements type
Example
Manifested By Artifacts
The property shows artifacts that physically render the current component.
Component
Relationships: Manifestation
Artifact

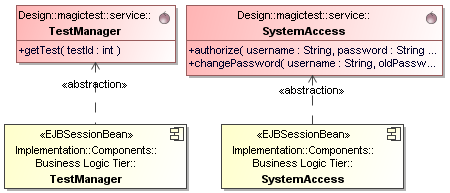

Realizing Component
The property shows the components representing the class realization in the Implementation model.
Class
Relationships: Abstraction
Component
Realizing Classifier
The property shows classifiers that realize components through component realization.
Component
Relationships: Component Realization, Realization
Classifier
Realizing Class
The property shows the classes representing the use case realization in the Design model.
Use Class
Relationships: Abstraction
Class
Realizing Use Case
The property shows the realizing use cases of the current use case in the lower level of abstraction thus demonstrating how the use case is implemented. For example, the Requirements Use Case realizes the Business Use Case.
Use Case
Relationships: Abstraction
Use Case
Realizing Classifier
The property shows the classifiers conforming to the contract specified by the interface and related with this interface through the interface realization relationship.
Interface
Relationships: Interface Realization
Classifier
Realizing Element, All Realizing Elements.
Available in Enterprise and Architect editions only.
The Realizing Element property gathers the source elements of the abstraction relationship.
The All Realizing Elements property gathers recursively (performs a realizing element search for the result) source elements of the abstraction relationship.
