Macro keyboard shortcuts

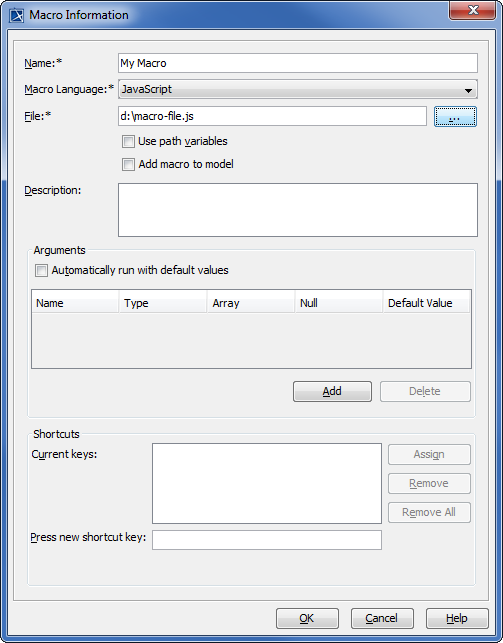

Macro Engine allows you to assign keyboard shortcuts to the macros that you have created using either the Environment Options or Macro Information dialog, see figures below. You can later press the keyboard shortcuts to execute or run the macros.

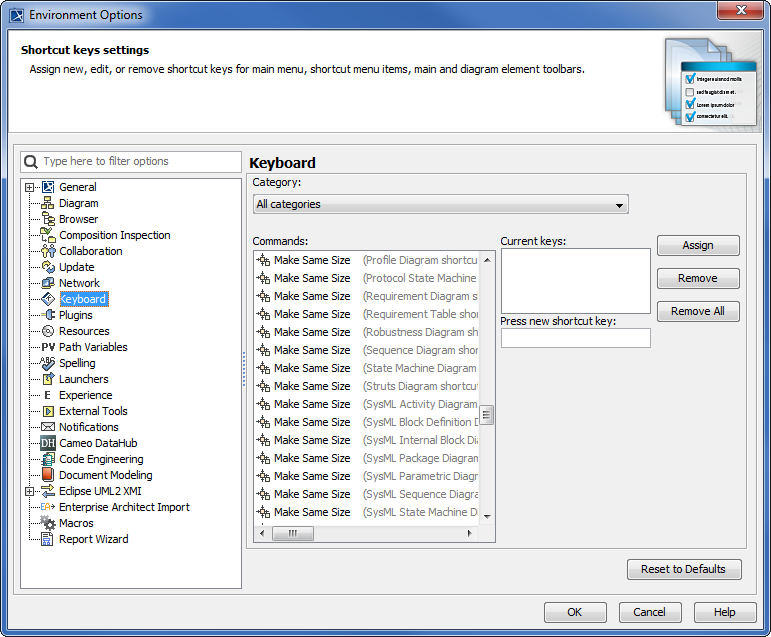

To open the keyboard shortcuts pane in the Environment Options dialog

1. Click Options > Environment on the main menu. The Environment Options dialog will open.
2. Click Keyboard, see figure below.

The macro information and keyboard shortcuts that are saved either in the Environment Options or Macro Information dialog will be stored as a modeling tool's environment. They will not be kept in a specific project file [*.mdzip].

• The  button in the Macro Information or Environment Options dialog will be disabled until you type a keyboard shortcut in the  box.

The table below lists the Keyboard Shortcut Buttons

Button	Function
	To assign a new keyboard shortcut to a macro.
	To remove the keyboard shortcuts from the selected item in    box.
	To remove all keyboard shortcuts from a macro.

 The table below lists the Keyboard Shortcut Text Boxes

Field	Function
Current keys	To store a list of keyboard shortcuts currently assigned to a macro.
	To type a new keyboard shortcut to be assigned to a macro.
