The property shows which components are manifested in an artifact.
Artifact
Relationships: Manifestation
Component
Specifying Class

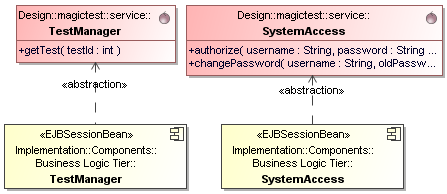

The property shows the classes representing the component specification from the Design model.
Component
Relationships: Abstraction
Class
Specifying Component
The property shows the components that are realized by classifiers through component realization.
Classifier
Relationships: Component Realization, Realization
Component
Specifying Use Case
The property shows the use cases (from the Requirements model) representing the class specification.
Class
Relationships: Abstraction
Use Case
Specifying Use Case
The property shows the use cases that specify the given use case in the higher level of abstraction. For example, the Business Use Case specifies the Requirements Use Case.
Use Case
Relationships: Abstraction
Use Case
Realized Interface
The property shows the interfaces specifying the contract, in which the related classifier conforms to.
Classifier
Relationships: Interface Realization
Interface
Specifying Element, All Specifying Elements
Available in Enterprise and Architect editions only.
The Specifying Element property gathers specifying elements from the upper abstraction level.
The All Specifying Elements property transitively gathers specifying elements from all upper abstraction levels.
