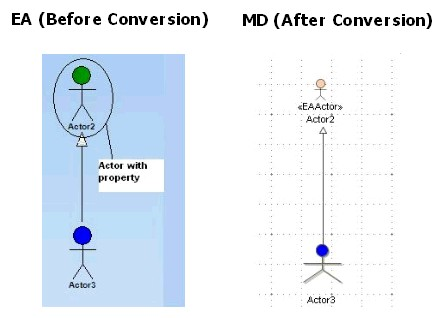

An Actor with properties will be transformed into a Class with the «EAActor»stereotype.
An actor with properties.
Note
An Actor that has been converted to a Class with «EAActor» will not display some properties (such as Fill Color) because the stereotype image will be shown instead.

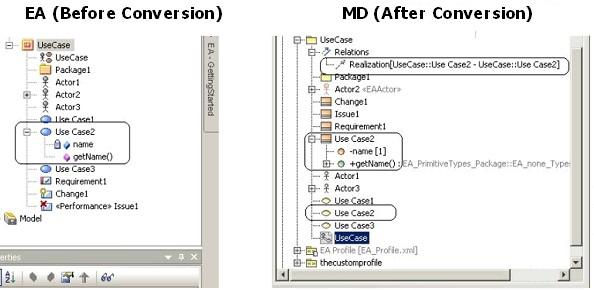

Use Case with Invalid Inner Elements
A NestedClassifier, ownedComment, ownedRule, ownedAttribute, or ownedOperation cannot be an inner element of a uml:UseCase. It will be moved to a new created realized Class.
A Use Case with invalid inner elements.

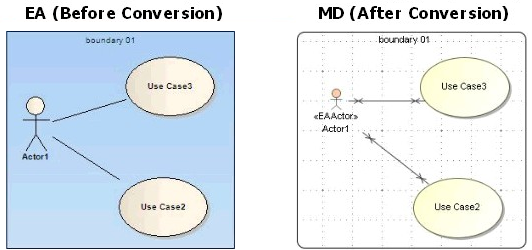

Boundary
A boundary in EA will be converted into a rectangle with rounded corners. The boundary can contain inner elements. Unlike the rectangular boundary, the boundary in EA will take all inner elements with it whenever it is moved.
