Description

The Personnel Taxonomy (Pr-Tx) domain shows the taxonomy of types of organizational resources.

The Personnel Taxonomy (Pr-Tx) domain is divided in two forms:

  • Typical (e.g., a typical brigade command structure). It shows the possible relationships between organizational resources. The key relationship is composition, i.e., one organizational resource being part of a parent organization. In addition to this, the architect may show the roles each organizational resource has, and the interactions between those roles, i.e., the roles represent the functional aspects of organizational resources.

    The intended usage of the typical form of the Personnel Structure (Pr-Sr) domain includes:

    • Organizational analysis.
    • Definition of human roles.
    • Operational analysis.
  • Actual (e.g., an organization chart for a department or agency). It shows the structure of a real organization at a particular point in time.

    The intended usage of the actual form of the Personnel Structure (Pr-Sr) domain includes:

    • Identify architecture stakeholders.
    • Identify process owners.
    • Illustrate current or future organization structures.

Implementation

The Personnel Taxonomy (Pr-Tx) domain is represented by:

Sample

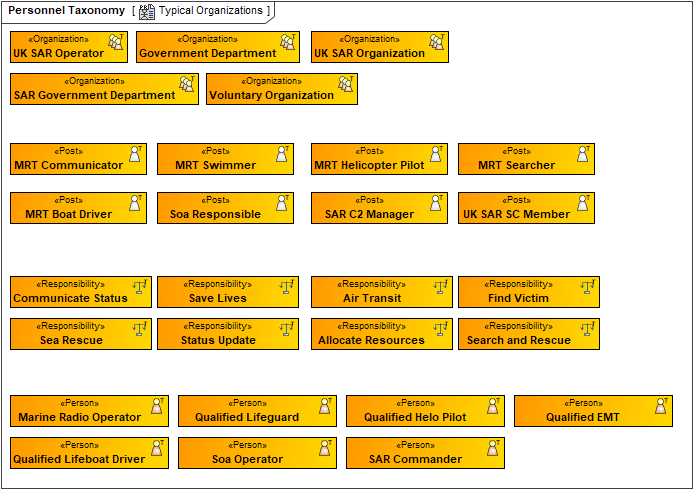

An example of the Personnel Taxonomy diagram
