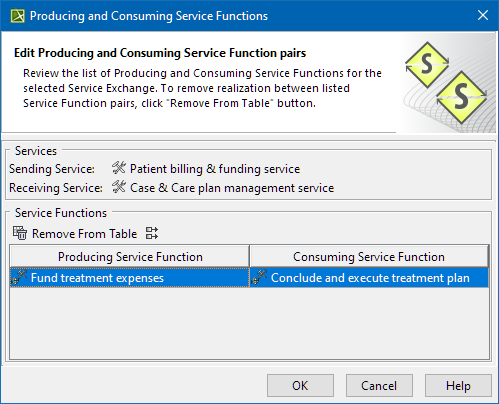

Producing and Consuming Service Functions dialog

The Producing and Consuming Functions dialog allows you to review and modify the list of Producing and Consuming Service Functions for a selected Service Exchange.

To open the Producing and Consuming Service Functions dialog

In the Specification window of the Resource Exchange, select Producing Service Function/ Consuming Service Function property value cell and click.
In the Services Connectivity Table or Service Role-based Connectivity Table, select Producing Service Function/ Consuming Service Function cell and click.
In theService Exchange Manager dialog, Select Producing Service Function / Consuming Service Function cell and click.

The buttons of the dialog are described in the following table.

Button	Description
Remove From Table	Click to delete a selected Producing and Consuming Service Functions pair.
Show Full Paths	Toggle either to show or hide the full element paths.

To remove the realization between listed Service Function pairs

Select the needed Service Functions pair.
Click the Remove From Table button.
