UAF 1.2 Enterprise Mission to UAF 1.3 Actual Mission

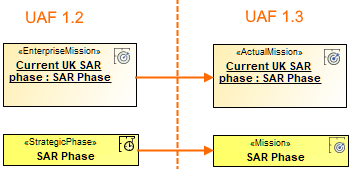

In a single case

The Enterprise Mission is migrated to the Actual Mission, and the Strategic Phase is migrated to the Mission.

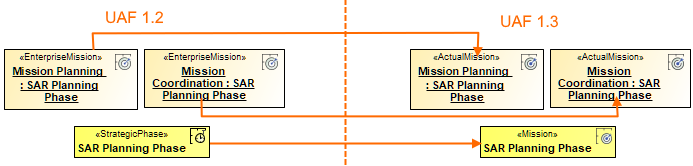

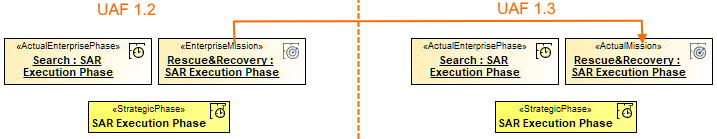

In multiple cases

  • The Enterprise Mission is migrated to the Actual Mission, and the Strategic Phase is migrated to the Mission



  • The Enterprise Mission is migrated to the Actual Mission, and the Strategic Phase is migrated to the Strategic Phase

Location Holder

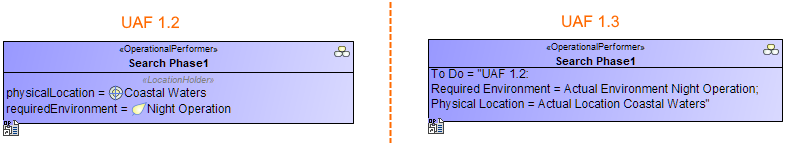

Asset

  • The Asset was removed from the Location Holder subtypes.
  • The requiredElement and physicalLocation information was added to the ToDo property.

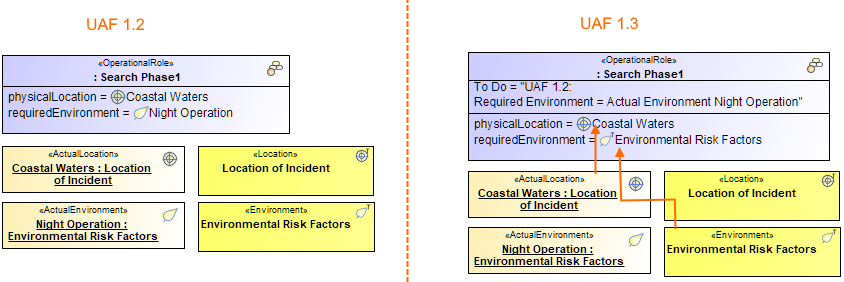

Resource Role and Operational Role

  • The requiredElement property type is changed from Actual Environment to Condition.
  • The information from the requiredElement property was moved to the ToDo property.

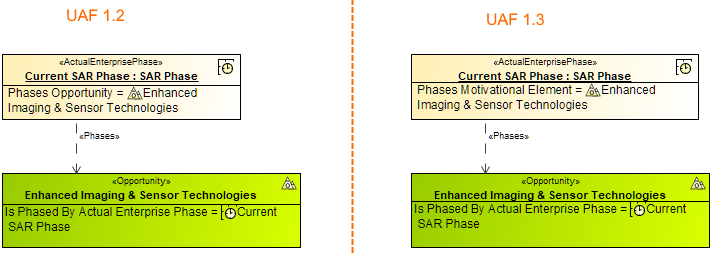

Phaseable element and Phases relationship

Changes of Phases relationship supplier Phaseable element:

  • Opportunity was removed fromthe  Phaseable Element subtypes.
  • Motivational Element added to Phaseable Element subtypes (Opportunity is a subtype of Motivational Element.

Changes of Phases relationship client Actual Strategic Phase

  • The Actual Strategic Phase derived property phasesOpportunity was renamed to phasesMotivationalElement.

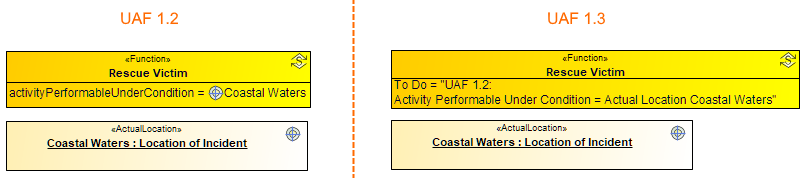

Activity

  • The ActivityPerformableUnderCondition property was removed
    • The property information was added to the ToDo property.

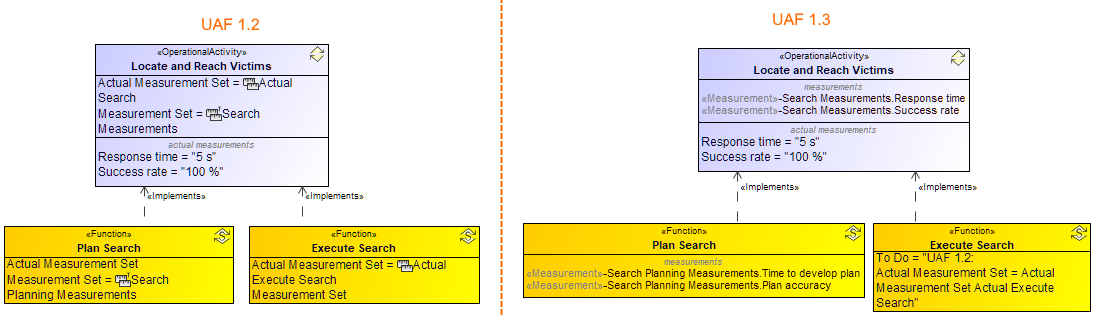

  • Activity changes
    • Activity was removed from the Measureable element subtypes.
      • Properties MeasurementSet and ActualMeasurementSet are removed.
    • Activity was added as a subtype of a Property Set.
      • An Activity can own measurements directly.

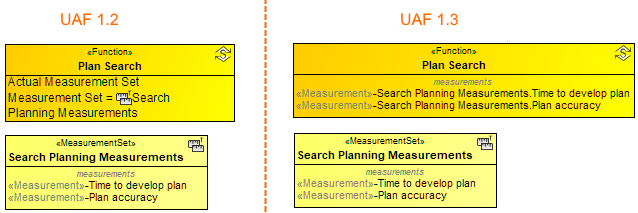

Example 1. Measurement Set

Measurement is created for an Activity and typed by the Measurement Set (removed property value)

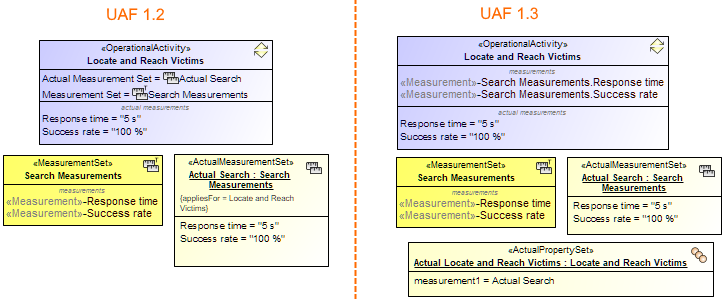

Example 2. Measurement Set and Actual Measurement Set

  • Measurement is created for an Activity and typed by the removed property Measurement Set.
  • Actual Measurement is created for an Activity, and a new Actual Property Set is created with filled-in slots for the removed Actual Measurement Set.

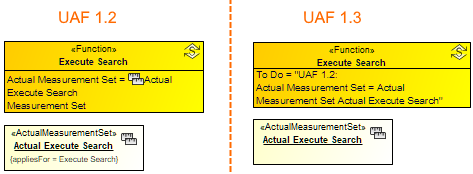

Example 3. Actual Measurement Set

The information is added to the ToDo property if the Actual Measurement Set (removed property value) was without a type.

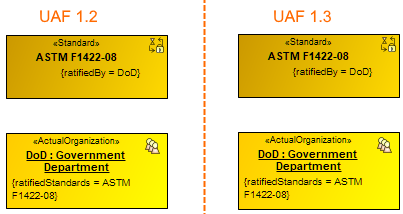

Standard and Actual Organization

ratifiedBy property:

  • ratifiedBy property type was changed from Actual Organization to Actual Organizational Resource
  • The property value after the migration is not affected.


-----------------------------

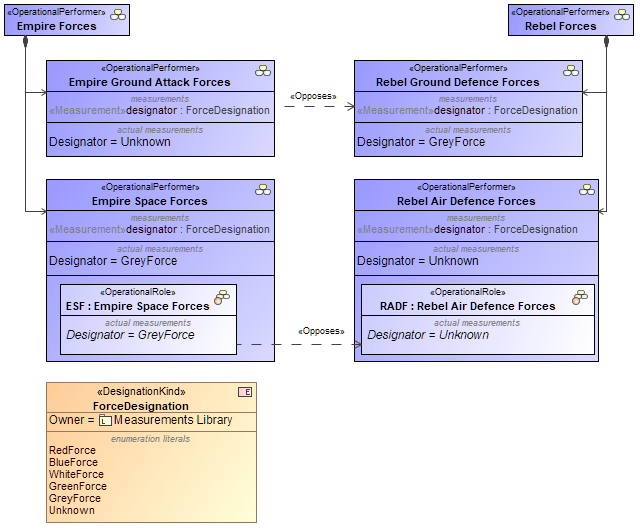

Modeling suggestion

Here is a suggestion on how to model with Opposable element and Designation Kind.
