UAF 1.2 Plugin
Released on: July 11, 2025
The 2024x Refresh3 release comes with Gantt Chart improvements such as the ability to control sub-resource visibility and depth in the Capability Provisions panel, and to manage their In Service / Out of Service dates directly. You can also now select Actual Project Milestones across multiple Gantt charts. Additionally, in this version, UAF element numbering was enhanced to support multi-level hierarchical numbering.
To download the latest version, see Downloading installation files. For further information, check the product documentation.
Gantt Chart Improvements

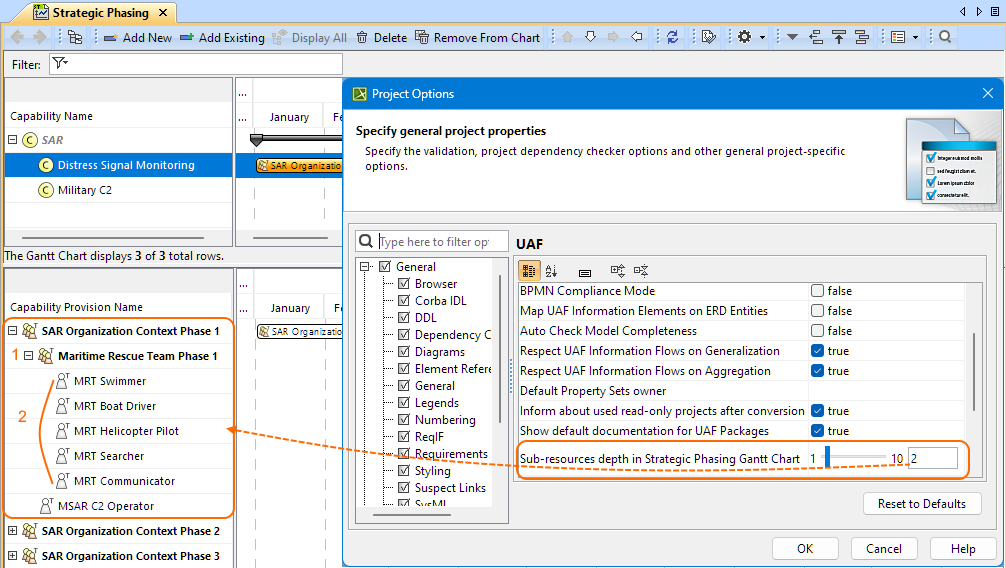

- A new project option allows you to set the depth of displayed sub-resources in the Strategic Phasing/CV-3/StV-3/NCV-3/Cr Gantt Chart Capability Provisions panel. This lets you control how many sub-resource levels are displayed in the Capability Provision area.
- Learn more >>>

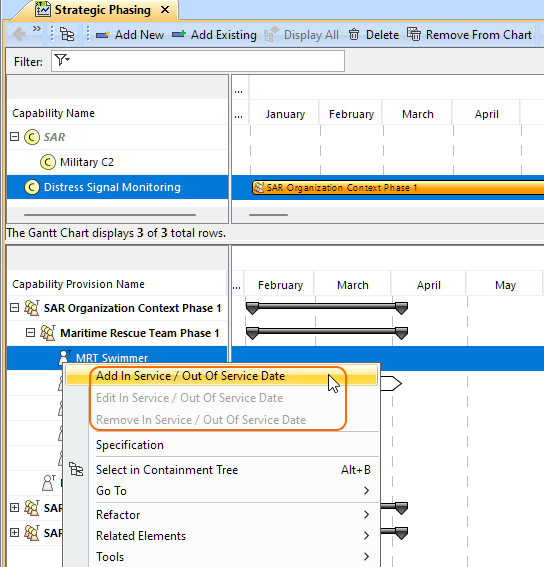

- When you enable sub-resource visibility in the Strategic Phasing Gantt chart, you can now add, edit, or remove In Service / Out of Service dates for sub-resources directly in the Capability Provision area. Learn more >>>
- Now you can select an existing In Srvice / Out of Service Actual Project Milestones in the following Gantt charts:
- Strategic Phasing
- Resources Evolution
- Personnel Evolution
- Services Roadmap
UAF Element Numbering

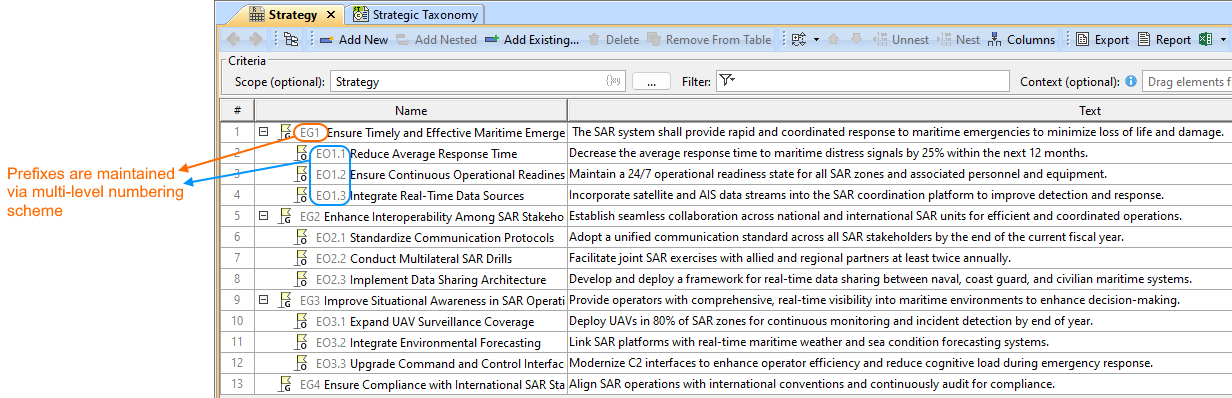

In this version, the UAF element numbering was enhanced. The multi-level numbering is now available for UAF elements. Now, you can apply:
- hierarchical numbering to UAF elements (such as Driver, Operational Information),
- hierarchical numbering with dynamic prefixes for the UAF requirements (such as Enterprise Goal, Enterprise Objective) based on SysML requirements.
Learn more >>>
Other Enhancements
- A new Correctness validation rule was implemented to check whether the Capability Provision's actual start/end dates align with the Capability Provision's Learn more >>>
