Flows on decision

Abbreviation

DecisionOut

Description

This validation rule checks if a Decision Node has more than one Outgoing Edge.

Severity

warning

Constrained Element

DecisionNode

Solvers

• To fix this, make sure a Decision Node has more than one Outgoing Edge.

Example

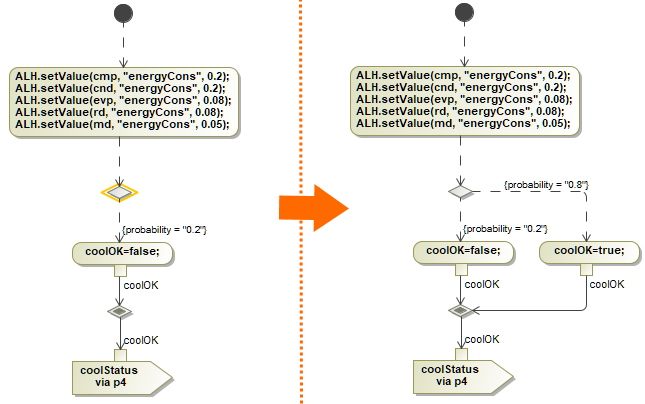

The Decision Node has only one Outgoing Edge. The error is resolved by creating a second Outgoing Edge.
