Guard on decision

Abbreviation

DecisionGuar

Description

This validation rule checks if a Flow from a Decision Node has a Guard specified.

Severity

warning

Constrained Element

ActivityEdge

Solvers

• To fix this, make sure to specify a Guard for a Flow from a Decision Node.

Example

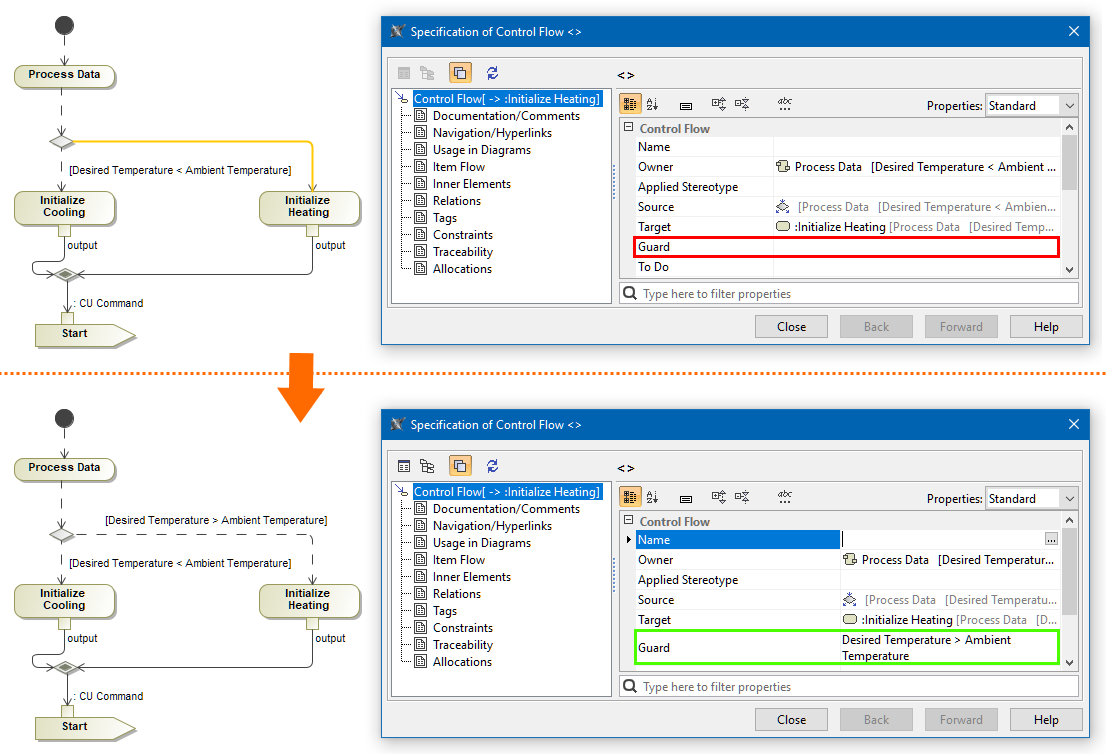

The Decision Node has two outgoing Object Flows, one of which has no Guard. The error is resolved by specifying the Guard for the second Flow.
