Abbreviation

Block[3]

Description

This validation rule checks if the Property that is typed by a Block and is owned by an Association (which kind is Aggregation or Composition) does not have a name and is not defined as a navigable end of the Association.

Severity

warning

Constrained Element

Property

Solvers

To fix this, delete the name of the Property that s typed by a Block and is owned by an Association end which is not navigable.

Example

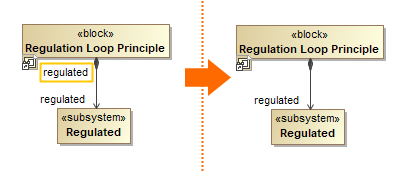

The Property typed by the Regulation Loop Principle Block and is owned by Association has no name.
