No Activity Outgoing Edge

Abbreviation

ActOutEdg

Description

This validation rule checks if an Activity should have Outgoing Edges: Control Flows or Object Flows.

Severity

warning

Constrained Element

ActivityNode

Solvers

• To fix this, make sure an Activity has Outgoing Edges: Control Flows or Object Flows.

Example

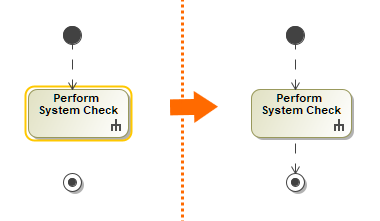

Call Behavior Action has no Outgoing Edge. The error is resolved by creating a Control Flow between the Call Behavior Action and the Activity Final Node.
