No Outgoing Transitions

Abbreviation

StatOutTrns

Description

This validation rule checks if a State is without Outgoing Transitions.

Severity

warning

Constrained Element

Vertex

Solvers

• To fix this, make sure a State has Outgoing Transitions.

Example

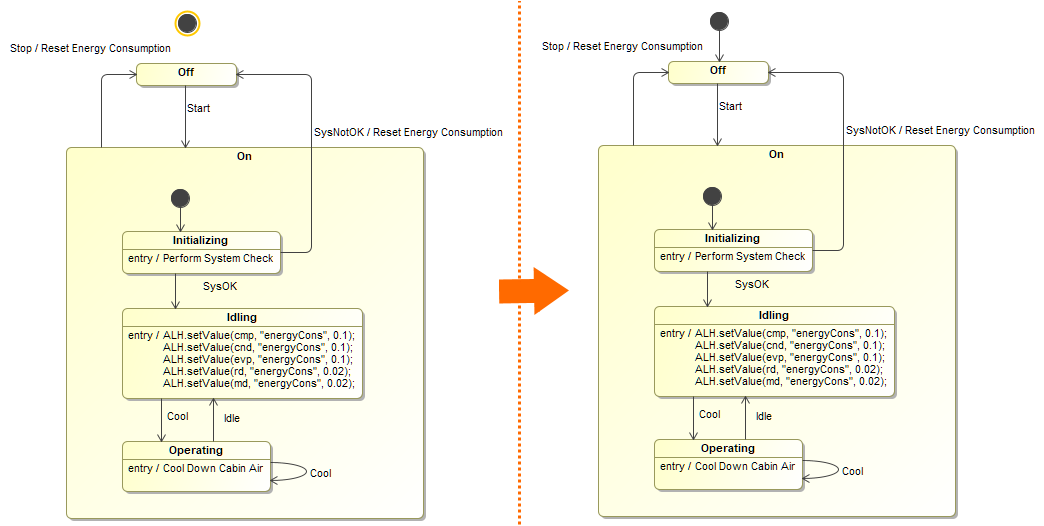

The Initial Pseudo State does not have any Outgoing Transitions. The error is resolved by creating a Transition between the Initial Pseudo State and the State Off.
