Abbreviation

OperationalBToSSync[3]

Description

No compatible Operational Exchange realization. The third validation rule checks realized Operational Exchanges in Activities and help to ensure the correct Operational Exchanges are realized on Operational Connectors that connect Operational Ports typed by compatible Operational Interface. The missing Exchanges can be handled automatically using solvers.

Severity

warning

Constrained Element

Diagram

Solvers

  • Realize Missing Operational Exchange - realizes existing compatible Operational Exchange found in the behavior model on the Operational Connector.
  • Open Operational Exchange Manager - opens the Operational Exchange Manager dialog.
  • Change Exchange Realization Compatibility Checking - opens the Project Options dialog to turn on/off the Exchange realization checking.

Example

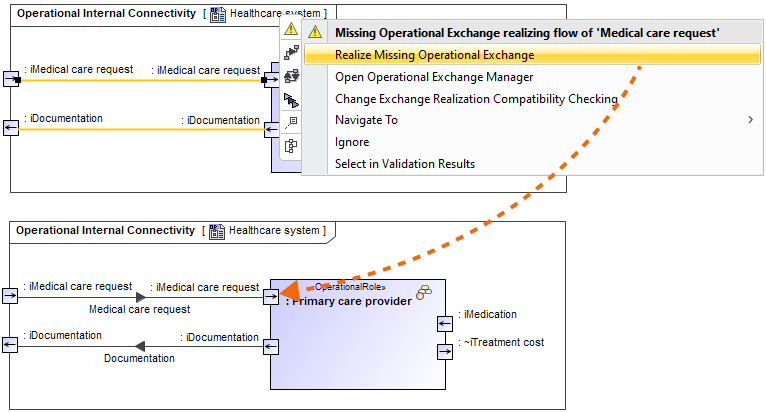

Realizing a missing Operational Exchange on the Connector in the Operational Internal Connectivity Diagram.
