Abbreviation

ServicesBToSSync[2]

Description

No compatible Service Connector. The second validation rule checks whether a Service Connector exists between the two compatible Service Ports owned by the Asset Roles. The missing Service Connectors can be handled automatically using solvers.

Severity

warning

Constrained Element

Diagram

Solvers

Create Service Connector - creates a missing Service Connector between the two compatible Service Ports.

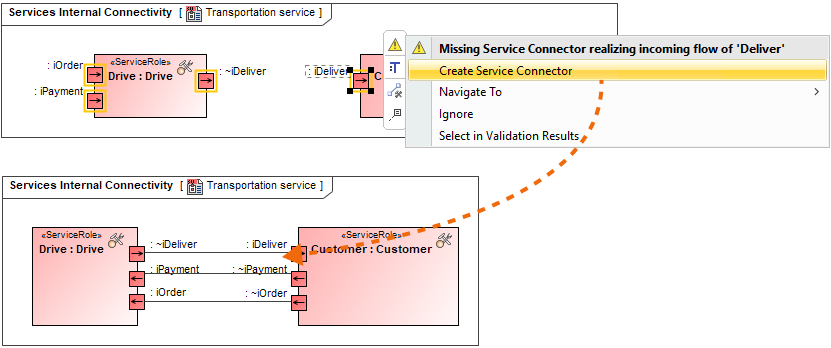

Example

Creating a Service Connector that is missing in the Service Internal Connectivity Diagram.
