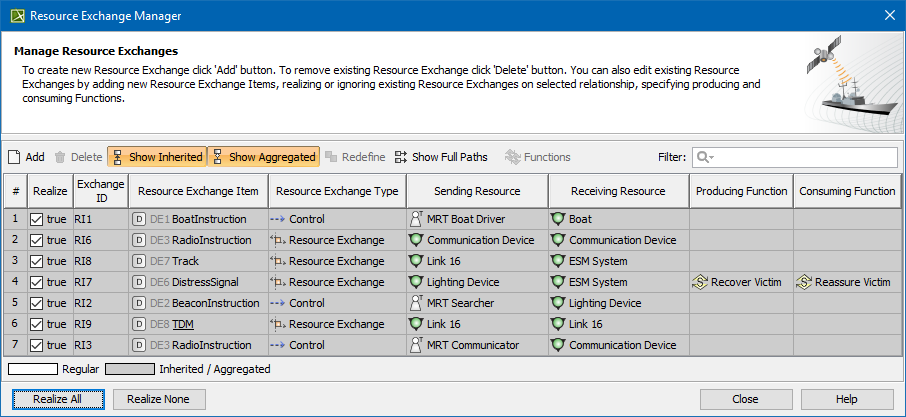

The Resource Exchange Manager dialog enables to analyze and manage the Resource Exchanges data. You can:

• Edit existing Resource Exchanges by adding new Resource Exchange Items
• Realize or ignore existing Resource Exchanges on selected relationship

• Status
  colour Green title Available from 19.0 SP1

  Change the Resource Exchange Item.
  Image Removed
• Specify producing and consuming Functions.

To open the Resource Exchange Manager dialog

1. Select Resource Connector, Association, Function Control Flow, Function Object Flow, or Resource Message in the diagram pane.
2. On the smart manipulator, click .
   The Resource Exchange Manager dialog opens.

1. .
