Cameo Simulation Toolkit supports Mathematica®, a Mathematical computation engine, to analyze and solve Mathematica®l expressions. Once you have installed Mathematica® , you can specify it as the language of opaque expressions.

First, you must install Mathematica® on your local machine, and then set up your system to allow Cameo Simulation Toolkit to use the installed Mathematica®.


To use Mathematica® on a 64-bit version of Microsoft Windows and Linux

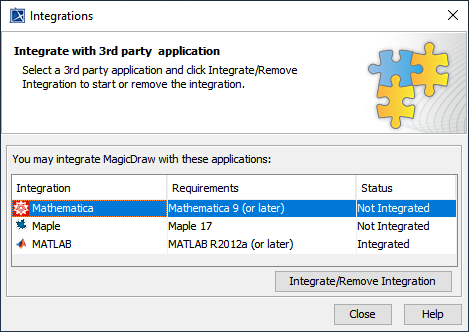

  1. On the MagicDraw main menu, select Tools > Integrations. The Integrations dialog opens.

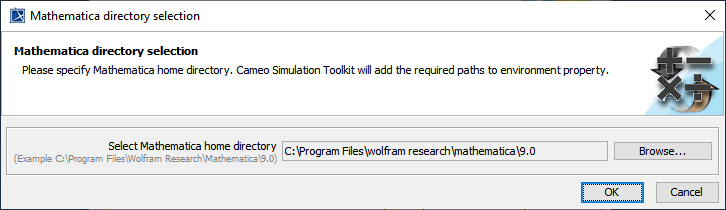

  2. From the list, select Mathematica and click Integrate/Remove Integration. The Mathematica directory selection dialog opens.



  3. Browse for the home directory of Mathematica®.
  4. Click OK and restart MagicDraw.

To use Mathematica® on Mac OSX

  1. From the main menu, click Tools > Integrations. The Integrations dialog opens.

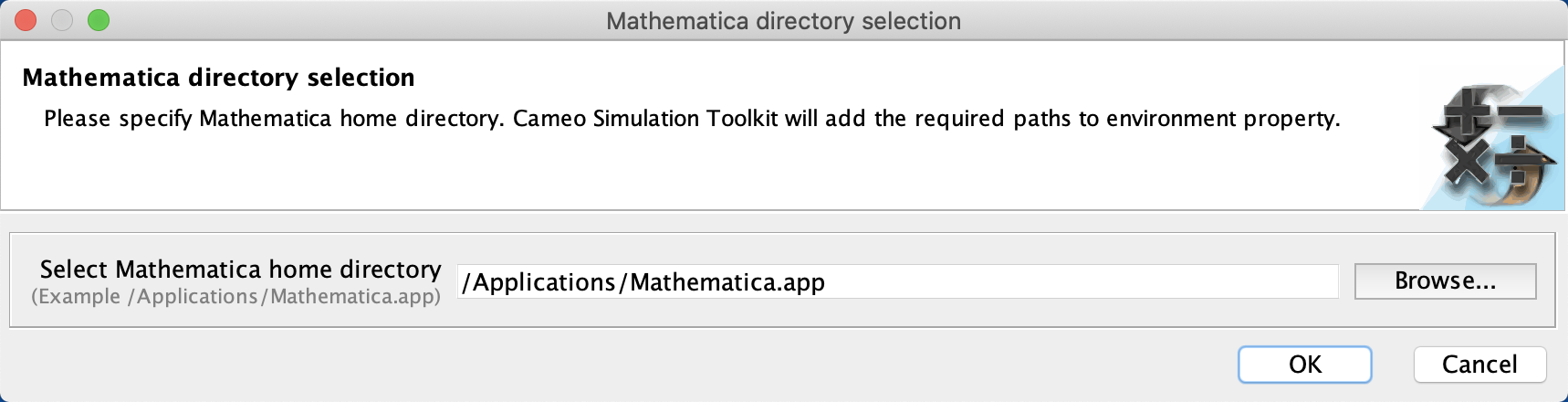

  2. From the list, select Mathematica and click Integrate/Remove Integration. The Mathematica directory selection dialog opens.



  3. Specify the directory where you have installed Mathematica® and click OK.
  4. Restart the modeling tool.

(Only for integration with Mathematica Version 12.3 or later) After completing the steps above using the Integration dialog, you must change JAVA_HOME to JDK 11 by following the steps below:

  1. Download JDK 11 (11.0.12 recommended) according to your operating system from https://www.oracle.com/java/technologies/downloads/#java11. Alternatively, you can use the bundled java from Mathematica 12.3 or later, in the [Mathematica installation dir]\SystemFiles\Java\Windows-x86-64 directory.
  2. Open the <install_root>/bin/<modeling_tool_name>.properties file (e.g., magicdraw.properties) with a text editor.

  3. Change JAVA_HOME to the JDK 11 directory and save the file, for example:

    JAVA_HOME=C\:\\Program Files\\AdoptOpenJDK\\jdk-11.0.12


  4. Restart the modeling tool.
