When you simulate a model related to time (such as a transition with a time trigger), Magic Model Analyst will obtain the simulation time from a simulation clock. The simulation time is the amount of time spent simulating a model. Magic Model Analyst also uses the simulation time in the timestamp of a signal instance in a SimulationLog (see Simulation log), in a time series chart (see Time Series Chart), and on messages of a generated Sequence diagram.

There are three types of simulation clocks in Magic Model Analyst:

• Built-in clock. This is the default simulation clock.

• Internal simulation clock. This clock is designed to precisely control the simulation time. Its implementation is based on UML run-to-completion semantics and internal completion events.
• Model-based clock. You can select the model-based clock by making a property as the time value tag definition of a Simulation Config. See Model-based Clock for further details on the model-based clock.



To open the Simulation Clock

• Right-click a session in the Simulation Sessions pane and select Show Simulation Clock.



The Simulation Clock dialog with the Step button.

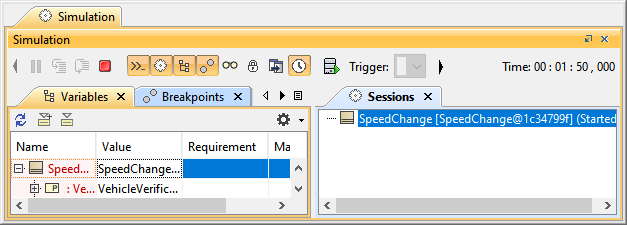

To show or hide the Simulation Time

• Click in the toolbar of the Simulation window.
