This page explains the content of the cell in the Dependency matrix. The following sections describe the Dependency matrix areas and cell content:

Rows, columns, and cells in the Dependency matrix

The Dependency matrix contains the following areas:

• Rows display elements specified in the Row Element Type box and Row Scope box of the criteria area.
• Columns display elements specified in the Column Element Type box and Column Scope box of the criteria area.

• Cells display dependencies between elements specified in the rows and columns. The content of the cells depends on selected criteria in the Dependency Criteria box and the Direction box of the criteria area.

  How to specify boxes in the criteria area of the Dependency matrix >



The main areas of the Dependency matrix. The illustration displays concepts from the SysML Plugin.

Representation of the dependencies in a cell

The default representation of the dependencies in the cells includes the following:

• Arrowed diagonal. The direction of the arrow is from the client element to the supplier element.

• Diagonal. Elements depend on each other.



Numbers in the Dependency matrix

There are three types of numbers in the matrix (see the following figure):

1. The number of dependencies in the row.
2. The number of dependencies in the column.
3. The number of criteria in the cell.

The details of a cell

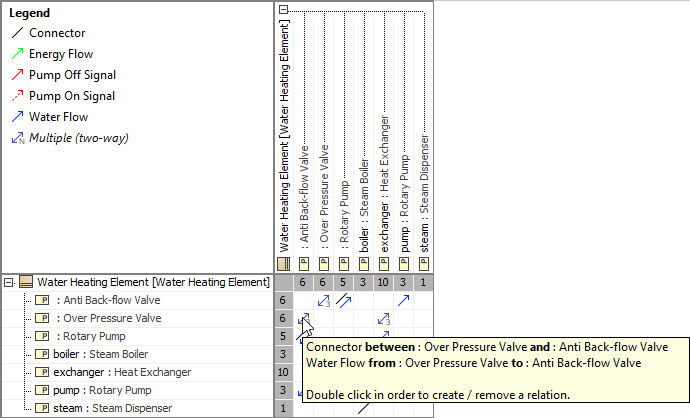

Move your mouse over a cell to view details of the dependency (relationship) represented in the cell. A tooltip displays the information about the relationships.

The ToolTip displays information about existing relations between Over Pressure Valve and Anto Black-flow Valve Blocks. The illustration displays concepts from SysML Plugin.
