Description The CV-5 addresses the fulfillment of capability requirements. This model shows the planned capability deployment and interconnection for a particular Capability Phase. The CV-5 can also be used to support the capability management process and, in particular, assist the planning of fielding. The intended usage of the CV-5 includes: - Fielding planning.
- Capability integration planning.
- Capability options analysis.
- Capability redundancy/overlap/gap analysis.
- Identification of deployment level shortfalls.

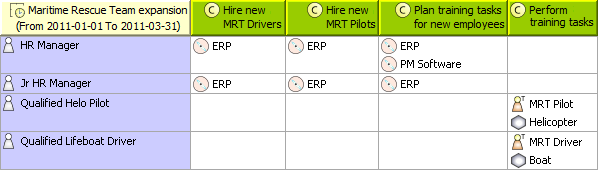

Implementation CV-5 can be represented using: - A CV-5 table.
- A CV-5 spreadsheet report.
To conduct a comprehensive analysis, several CV- 5 can be created to represent the different Enterprise Phases. Each CV-5 represents different Enterprise Phases defined in CV-1 Vision. The CV-5 shows deployment of Capabilities defined in CV-2 Capability Taxonomy to specific organizations. Deployed or No Longer Used Resources are taken from SV-1 Systems Interface Description or SvcV-1 Services Context Description. Actual Organizational Resources are taken from OV-4. The timing is based on PV-2 Project Timelines indicating delivery of Capabilities to actual organizational resources, and also the point at which those organizational resources cease to use a particular Capability. |
