You can drag the Interface Block directly on the Connector relationship to:

That helps to ensure an efficient interface modeling in the Internal Block Diagram.

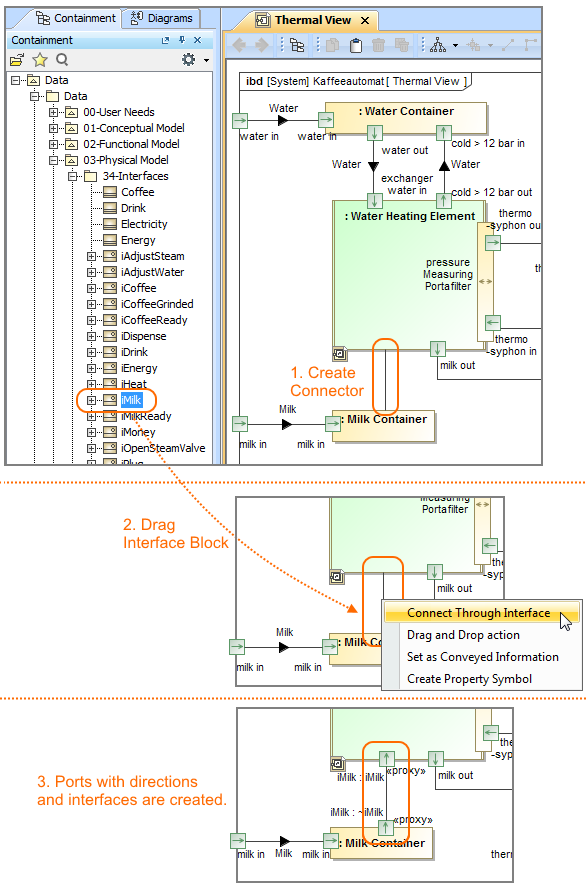

To connect parts through interface


  1. Create a Connector between two Part Properties.
  2. Drag an Interface Block on the Connector.
  3. From the opened menu, select Connect Through Interface command.
    The Proxy Ports with directions and interfaces are created.
