To create a .html/.htm format report


  1. In the Tools menu, click Report Wizard.
  2. In the Select Template area, select SysML-Web Reports, and choose the report type. Click Next.
  3. In the Select Report Data area, you can then select a predefined report data for the selected template (default = Built-in). Click Next.
  4. In the Select Element Scope area use:
  5. Click Next.
  6. In the Output Options area, define the appropriate options.
  7. Click Generate.

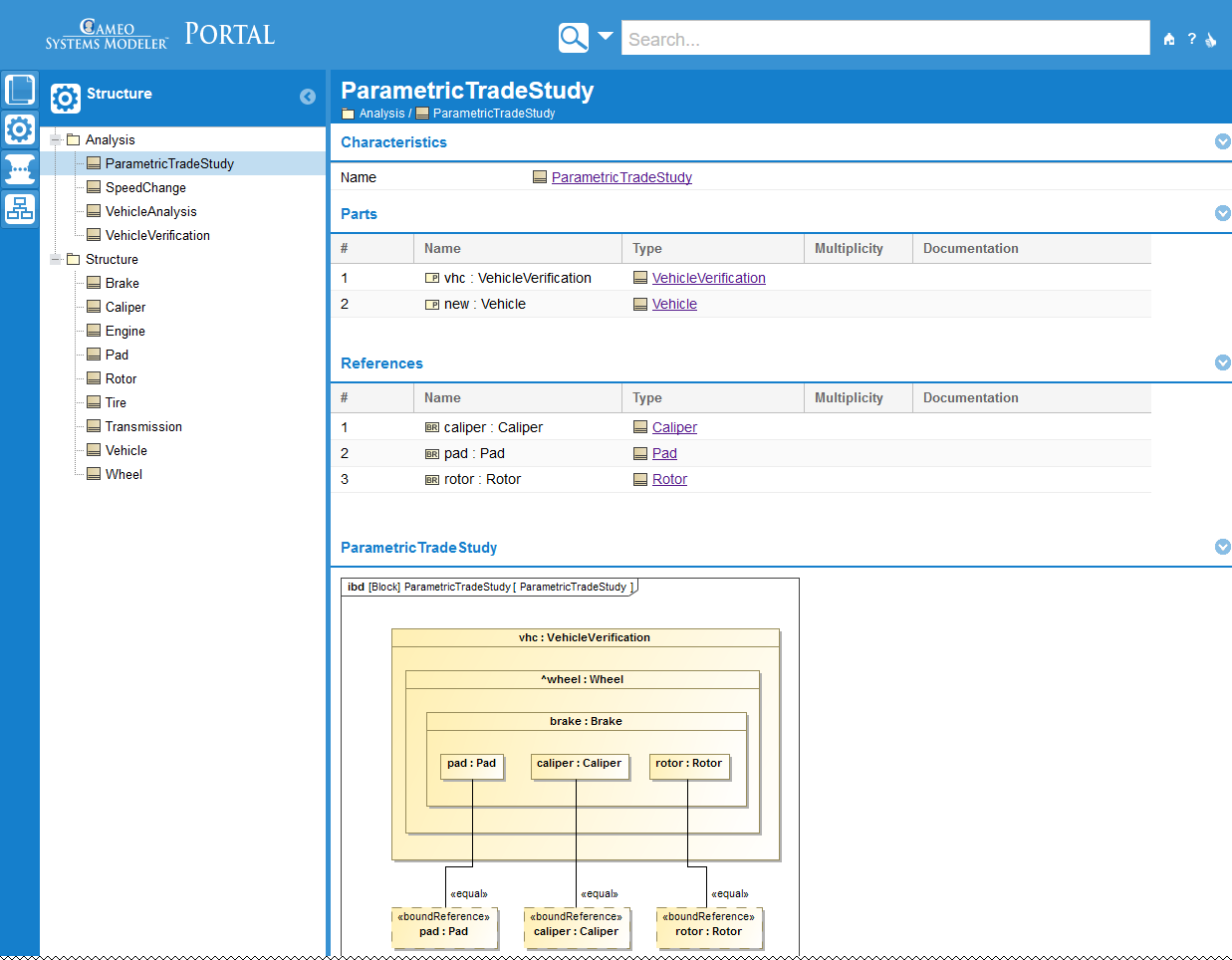

    Your web report is generated and automatically opens. See the example below.


Read more about Web portal reports in MagicDraw user guide.
