The Diagrams tab in the Model Browser represents diagrams created in your project.
Just diagrams grouped by types that are used in your project are listed in the Diagrams tab in the Model
Browser, not all diagram types as it was in earlier versions.
To open the Diagrams tab, do one of the following

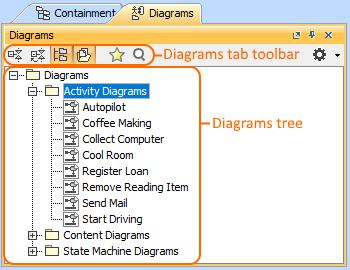

The Diagrams tab consists of the following two components:
- Diagrams tab toolbar
- Diagrams tree
Diagrams tab toolbar
The Diagrams tab toolbar contains the following button:
Collapse all of the currently elements in the Containment tree.
|Collapse Selected Recursively|
Collapses only selected node and all subnodes in that node.
Groups diagrams into packages by diagram types.
Groups diagrams into packages by the first symbol
of their name, when the model contains more
than 99 diagrams.
Opens the Favorites menu for choosing
to do one of the following:
- Add a selected element to favorites
- Open the dialog for managing favorites
- Navigate to a desired favorite in the Containment tree
Opens the Quick Find dialog.
The same action you may perform using the shortcut menu of the Diagrams tree.
Working with model elements in the Diagrams tree
You can work with diagrams in the Diagrams tree using the commands available from the selected diagram's shortcut menu. The shortcut menu contains the following commands:
Opens the selected diagram.
Opens the Print dialog.
Group by Diagram Type
Groups diagrams into the packages
according to the diagram type.
Select in Containment
Opens the Containment tab and selects
the current element in the Containment tree.
