To create an Activity Decomposition Table
- Create a Generic Table.
- Set the Element Type to Activity.
- Set the Scope to the Activity element for which decomposition hierarchy will be displayed.
- Open the Specification window of the Generic Table and click three dots
next to the Query property to edit it. - In the Query dialog, select Custom.

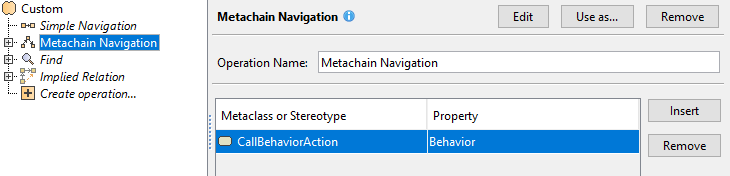

Select Metachain Navigation. - Click Insert.
- Under Metaclass or Stereotype, select CallBehaviorAction, and under Property, select Behavior.

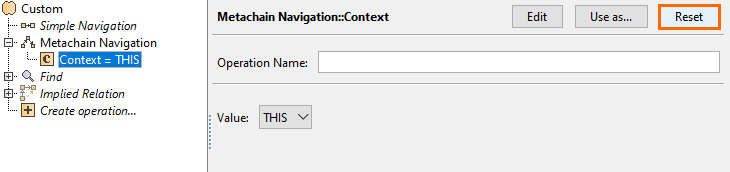

 - Select Context > Reset.

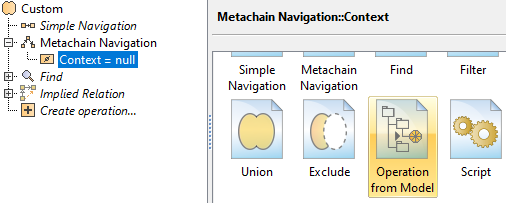

- Select Context > Operation from Model > Behavior Decomposition.

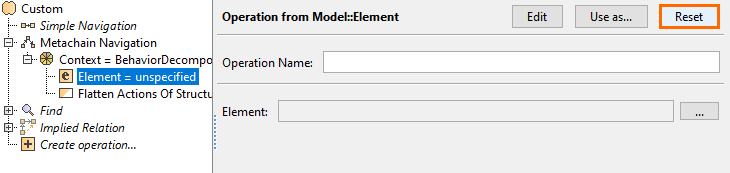

- Select Element > Reset.

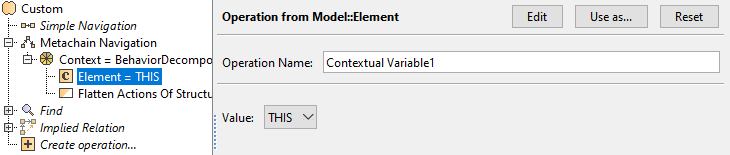

- Select Element > Contextual Variable.
 - Select the Build Hierarchy check box to recursively execute the specified expression for building a multilevel hierarchy starting from the scope as the root.
- Click OK.
|
