Description
This matrix defines how a Service Adapter performs the mapping between the Signal-Based interfaces and the Service interfaces.
The Row Scope and Column Scope are a Service Adapter Component or a package.
Location
The diagrams are created under the Service Adapter Component package in the Containment tree.

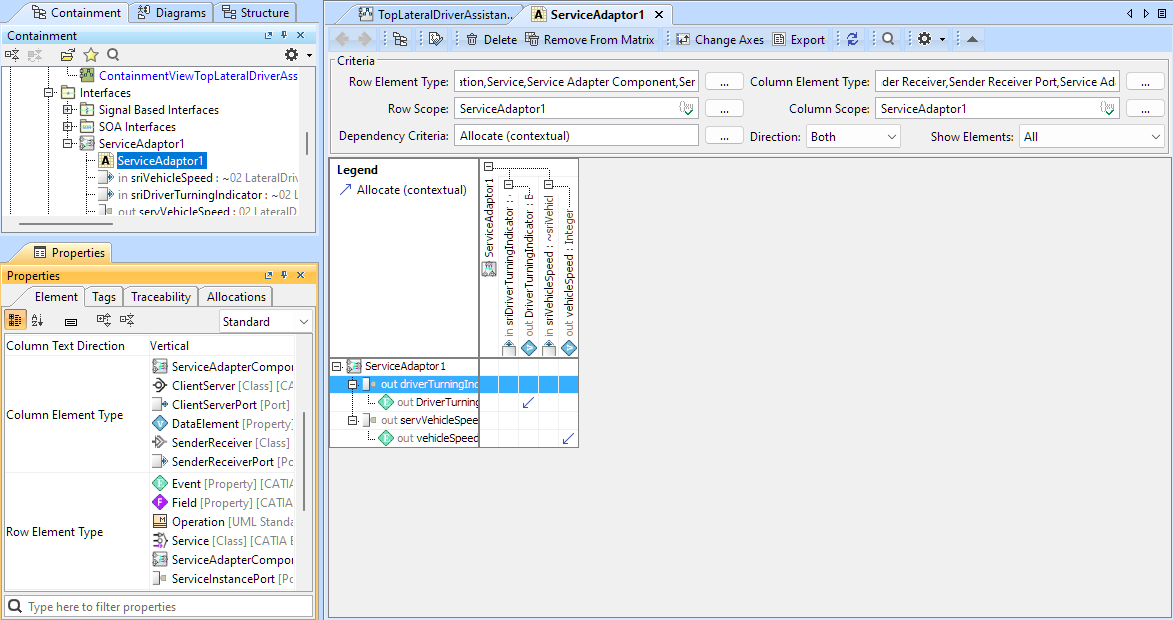

Examples
This example is taken from the sample model.
The samples are located in <modeling tool installation directory>samples\CATIA EE Architecture\
