Behavioral diagrams (Activity diagrams, State Machine diagrams, and Sequence Diagrams) and Composite Structure diagrams (Internal Block diagrams) can be embedded into HTML-generated user interfaces and animated.

Composite Structure diagrams only display activations and not run-time values.

Creating a UI Mockup with a State Machine Diagram

The Joystick.mdzip sample model is used to demonstrate how to create a UI Mockup with a State Machine Diagram.


To create a UI Mockup with a State Machine Diagram

  1. Open the <modeling_tool_install_dir>\samples\simulation\Joystick.mdzip sample model.
  2. Create a User Interface Modeling Diagram.
  3. In the diagram, create a Frame and create a Panel inside the Frame. To learn more about the components of a User Interface Modeling Diagram, refer to the UI modeling diagram simulation.

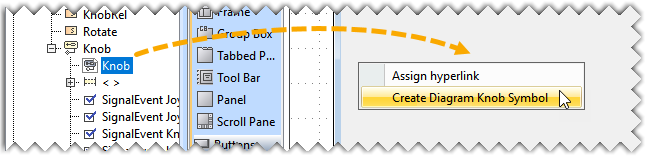

  4. Drag a State Machine Diagram to the Panel using a long drop and select the Create Diagram Knob Symbol command.



  5. Click the diagram symbol in the Panel to open the smart manipulator toolbar and click to view the diagram in the Panel.

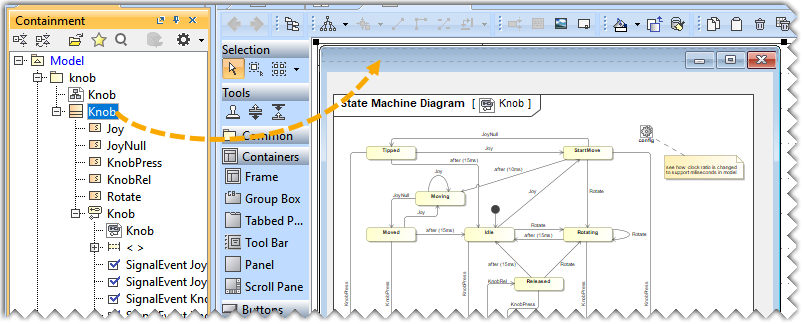

  6. Drag the Classifier from the Containment tree to the Frame.

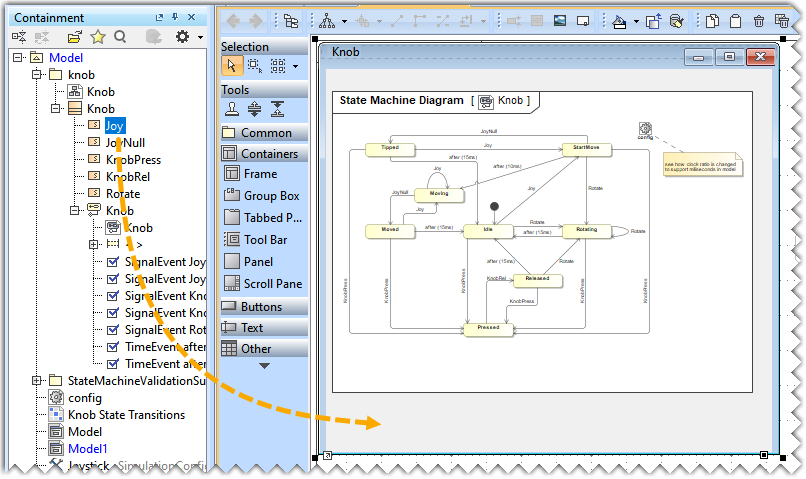

  7. Drag the Signals from the Containment tree to the Frame to create buttons.

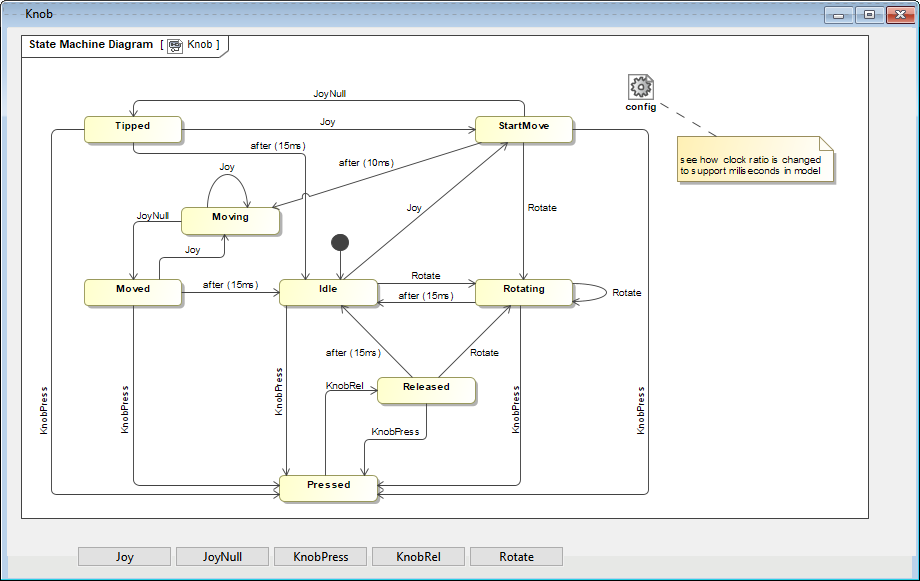

    After completing the steps above, the diagram should look like the one below.



  8. Drag the Frame from the Containment Tree to a Simulation Configuration.



  9. In the Specification window of the Simulation Configuration, set the Show UI As HTML property to true.

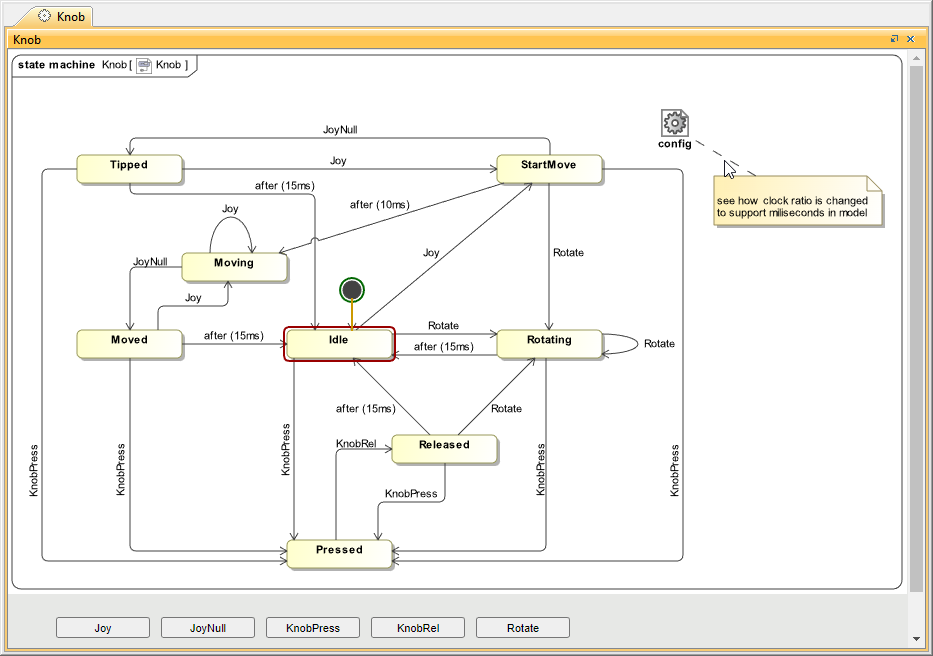

  10. Run the Simulation Configuration to simulate the created UI Mockup in the embedded browser.
