Description

The S7 Service I/F Parameters view identifies all the parameters used in Service Interfaces (see also S3).

Implementation

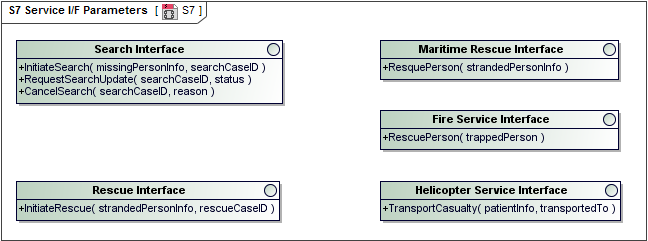

The S7 view can be represented using S7 Service I/F Parameters diagram which is based on the UML Class diagram.



Related elements
  • Service Interface
  • Service Operation
  • Service Attribute
  • Service Parameter
  • Service
  • Request
