Next, add entry Behaviors to the ready and running States of the StopWatch State Machine.


To add an entry Behavior to the ready State


  1. Click on the ready state and, in the Alf editor window, press Create.

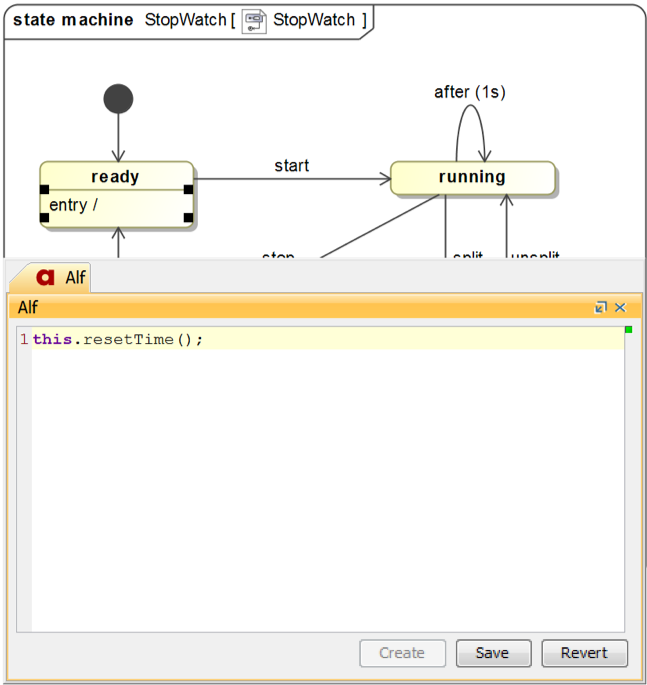

  2. Type the Alf code shown in the figure below.



  3. When the code is correct, press Save. The Alf code should now appear in the entry Behavior for the ready State, as shown in the figure below.


To add an entry Behavior to the running State


  1. Click on the running state and, in the Alf editor window, press Create.

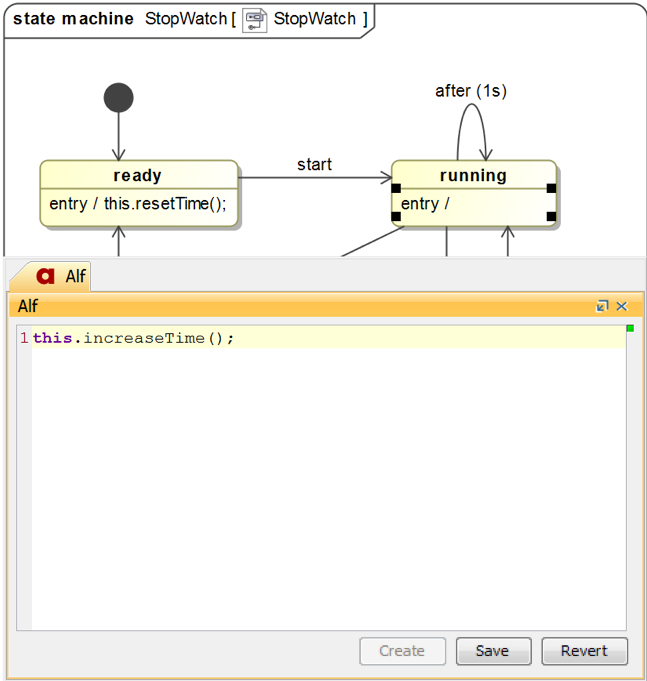

  2. Type the Alf code shown in the figure below.

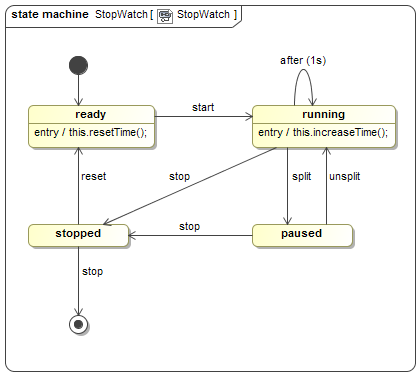

  3. When the code is correct, press Save. The Alf code should now appear in the entry Behavior for the running State, as shown in the figure below.


At this point the StopWatch has been completely modeled. You can now execute the StopWatch Class using Cameo Simulation Toolkit.

Next: Running the Stopwatch model
