Constructor and Destructor Name From Old Project Versions

This example shows the Class myClass that has Operation myClass(), which is the constructor, and Operation ~myClass(), which is the destructor.

Example Constructor and Destructor in the Class diagram

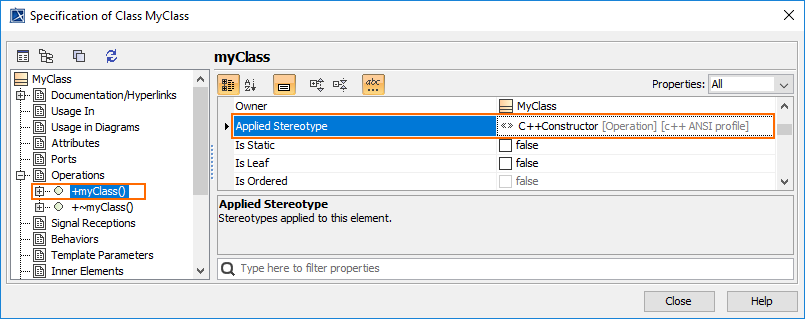

The Constructor and the Destructor operations.

To create a Constructor

1. Create a Class with an Operation.
2. Go to the Class Specification window.
3. Select Operation
4. Apply the stereotype «C++Constructor» for Operation.

To create a Destructor

1. Create a Class with an Operation.
2. Go to the Class Specification window.
3. Select Operation
4. Apply the stereotype «C++Destructor» for Operation.
