You can enable the Hide Uncommon Elements filter in the Select Type dialog to leave out uncommon element types and thus find the ones you need easier.
Hide Uncommon Elements filter in the Select Type dialog
Once Hide Uncommon Elements is enabled, the filter returns only those elements whose types are based on:
Class (except Metaclass and Term)
Component
Signal
Interface
DataType
Enumeration
PrimitiveType
AssociationClass

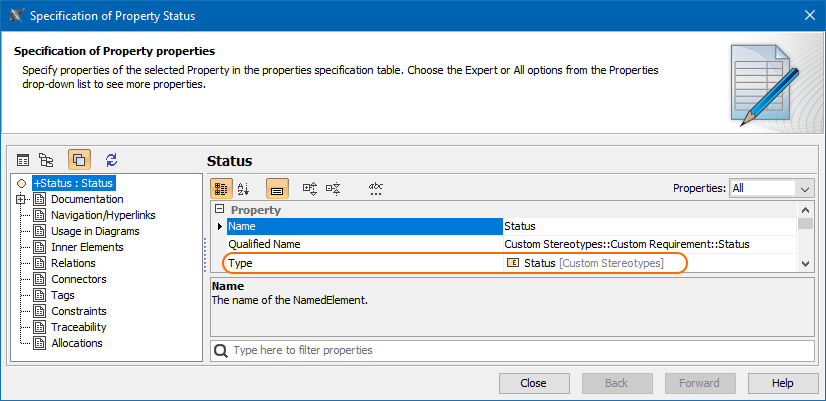

Specified property type
If the SysML profile is loaded, only elements of Block and ValueType types are listed in the Select Type dialog.
If the Stereotype tag types are being specified, metaclasses are not filtered out.
Metaclasses in the Select Type dialog
