To create a blank DDS project


  1. Do one of the following:
    • Select File New Project.
    • On the main toolbar, click the New Project button.
    • Press Ctr+Shiftl+N.
  2. In the New  Project dialog, under Systems Engineering, select DDS  Project.
  3. Specify name and location.
  4. Click OK when you are done.
    The blank project is created and stored in your file system with defined name.


Once you created the blank DDS Project, you can use for modeling already predefined Package structure as shown in the following figure.

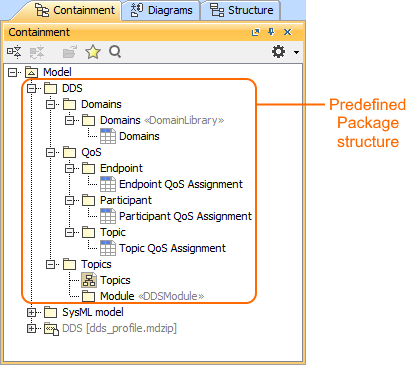

The predefined Package structure of blank DDS project.
