There are three ways to create the SysML projects:

Creating the blank SysML project

To create a blank SysML project


  1. Do one of the following:
    • Select File New Project.
    • On the main toolbar, click the New Project button.
    • Press Ctr+Shiftl+N.

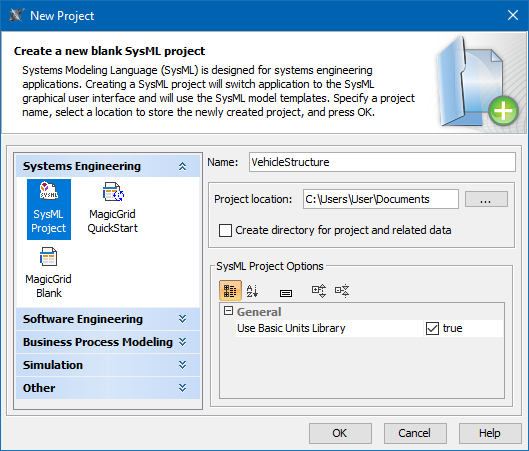

  2. In the New Project dialog, under Systems Engineering, select SysML Project.
  3. Specify name and location.
  4. Click OK when you are done.
    The blank project is created and stored in your file system with defined name.

Creating MagicGrid projects

To create a MagicGrid project


  1. Do one of the following:
    • Select File>New Project.
    • On the main toolbar, click the New Project button.
    • Press Ctr+Shiftl+N.

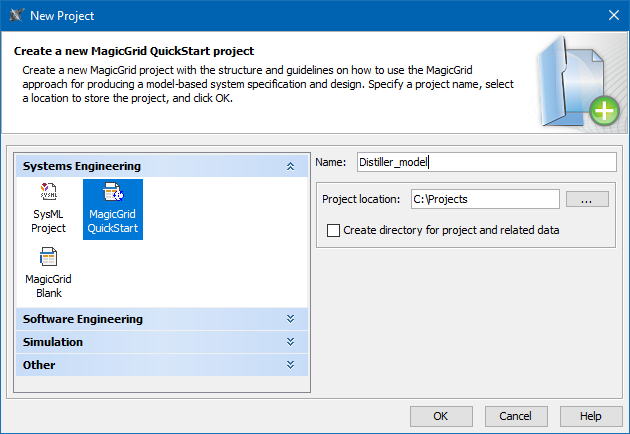

  2. In the New Project dialog, under Systems Engineering, select either:
     - MagicGridQuickStart - to create a project with a structure and guidelines on how to use the MagicGrid approach.
     - MagicGridBlank - to create a blank project with a predefined package structure of the the MagicGrid approach.
  3. Specify name and location.
  4. Click OK when you are done.
    The MagicGrid project is created and stored in your file system with defined name.

Creating SysML project from template

To create a SysML project from a template


  1. Do one of the following:
    • Select File>New Project.
    • On the main toolbar, click the New Project button.
    • Press Ctr+Shiftl+N.

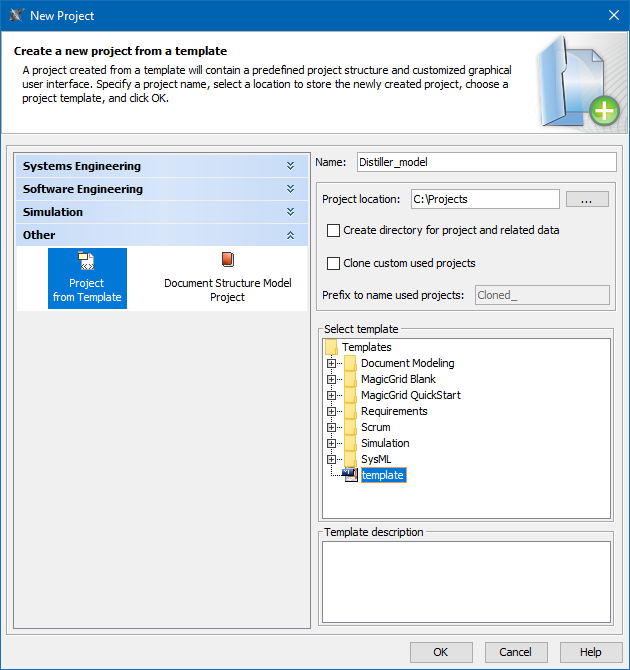

  2. In the New Project dialog, under Other, select Project from Template.
  3. Specify name and location.
  4. Select the SysML template.
  5. Click OK when you are done.
