Description

The purpose the NSV-10a Systems Rule Model is to specify functional and non-functional constraints on the implementation aspects of the architecture (for example, the structural and behavioral elements of the NSV viewpoint). NSV-10a describes constraints on the resources, functions, data and ports that make up the NSV physical architecture.

The constraints are specified in text and may be functional or structural (for example, non-functional).

Implementation

NSV-10a can be represented using:

  • A NSV-10a table.
  • A NSV-10a spreadsheet report.

Sample

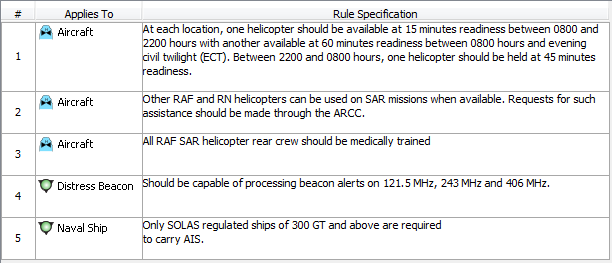

NSV-10a Systems Rule Model

Related views

NSV-10a describes constraints on resources, functions, and data that make up the NSV physical architecture. Where a Resource Constraint is based on some standard, then that standard should be listed in the Standards Profile (NTV-1).

Related elements
  • Resource Constraint
  • Resource Artifact
  • Software
  • Capability Configuration
  • Organization
  • Post
  • Function
  • Entity Item
  • Resource Interaction
  • Exchange Element
Related procedures
  • Creating NSV-10a table
