Description

This view is used to describe how a service is implemented by one or more systems. A particular implementation of a service can be seen as a capability configuration that is associated with this service. By providing this information, a clear connection between a service, as described in the NSOV diagrams, and systems that implement it can be defined.

Implementation

NSV-12 can be represented using a NSV-12 diagram which is an editable Dependency Matrix. The Service Interfaces will be used as the row elements and the Resources will be used as the column elements.

Sample

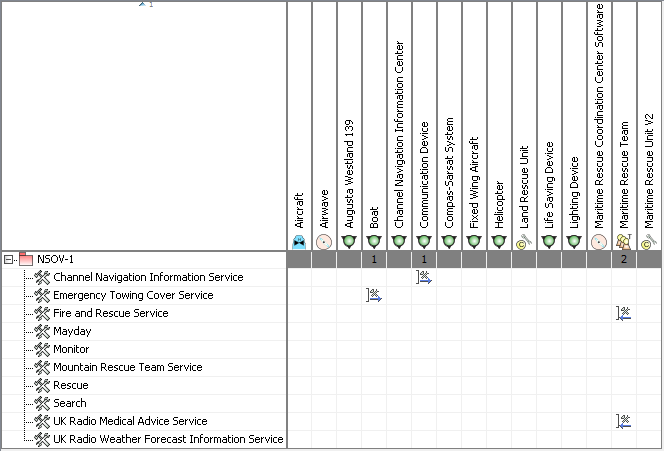

NSV-12 Service Provision

Related views

The service attributes defined in NSOV-1 can be given values in an NSV-12 and related to the environment under which those values are true.

Related elements
  • Resource Artifact
  • Software
  • Capability Configuration
  • Organization
  • Post
  • Service Interface
  • Service
  • Request
Related procedures
  • Building NSV-12 Service Provision matrix
