Description

The NATO System to System Matrix provides a tabular summary of the resource interactions specified in the NSV1 for the Architecture. An NSV-3 Product allows a quick overview of all the resource interactions specified in one or more NSV-1 diagrams. The NSV-3 can be organized in a number of ways to emphasize the association of groups of system pairs in context with the architecture’s purpose.

Implementation

NSV-3 can be represented using a NSV-3 diagram which is an editable Dependency Matrix. Rows and Columns in the matrix represent the Resources.

Sample

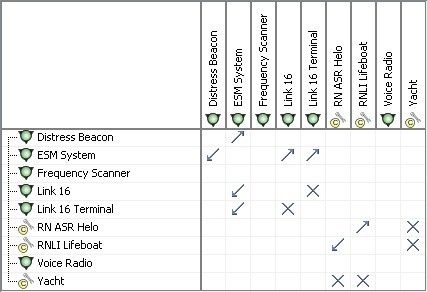

NSV-3 System to System Matrix


Related views

NSV-3 is a summary description of the resource interactions that are identified in NSV-1.

Related elements
  • Resource Artifact
  • Software
  • Capability Configuration
  • Organization
  • Post
  • Exchange Element
  • Resource Interaction
  • Materiel
  • Energy
Related procedures
  • Building NSV-3 matrix
