Description

The NSV-7 is the System Typical Quality Requirements Matrix and depicts the performance characteristics of a Functional Resource (system, role, or capability configuration). The System Typical Quality Requirements Matrix expands on the information presented in an NSV-1 by depicting the characteristics of the Functional Resources shown in the NSV-1. The System Typical Quality Requirements Matrix View specifies qualitative and quantitative characteristics of functional resources and the performance parameters of each resource. The performance parameters are selected by the architect and end user community.

Implementation

NSV-7 can be represented using:

  • A NSV-7 typical parameters table.
  • A NSV-7 actual parameters table.
  • A NSV-7 actual parameters spreadsheet report.

Sample

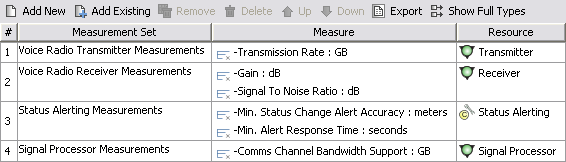

NSV-7 Typical table

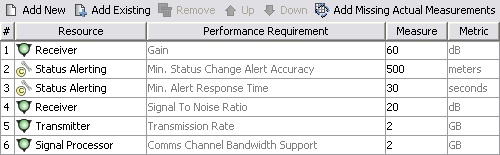

NSV-7 Actual table

Related views

IconViewRelationship

NSV-1 System Interface Description

The Resource Performance Parameters Matrix expands on the information presented in an NSV-1 by depicting the characteristics of the Resources shown in the NSV-1.

NSV-2 System Communications Description

NSV-7 expands on the information presented in an NSV-2 by depicting the characteristics of the Resources shown in the NSV-2.


Related elements
  • Resource Artifact
  • Software
  • System
  • Capability Configuration
  • Organization
  • Post
  • Measurement Set
  • Actual Property Set
  • Measurement
  • Actual Measurement

Related procedures
  • Creating NSV-7 Typical table
  • Creating NSV-7 Actual table
  • Generating NSV-7 Actual table from NSV-7 Typical table
  • Generating reports
