Description

The NATO System Evolution Description view presents a whole lifecycle view of a resource, describing how its configuration changes over time. The NSV-8 provides an overview of how a capability configuration structure changes over time. It shows the structure of several capability configurations mapped against a timeline.

Implementation

SV-8 can be represented using a SV-8 diagram which is realized as a time based diagram.

Sample

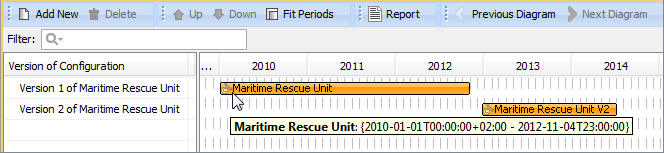

NSV-8 System Evolution Description

Related views

IconViewRelationship

NSV-1 System Interface Description

NPV-1 Programme Portfolio Relationships

The changes depicted in the NSV-8 View are derived from the project milestones that are shown using an NPV-1. When the NPV-1 is used to model project timelines for capability acquisition projects, there is likely to be a close relationship between these two Views.


Related elements
  • Whole Life Configuration
  • Version Of Configuration
  • Resource Role
  • Resource Interface
