Creating a diagram


To create a C8 diagram

  1. In the Containment Tree, select the C8 package and do one of the following:

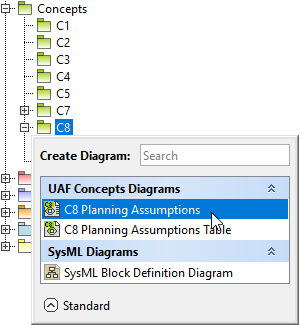

    • From the selected package's shortcut menu, select Create Diagram > C8 Planning Assumptions.
    • In the modeling tool's main menu, click Create Diagram, search for C8 Planning Assumptions and select it.
  2. Name a diagram or leave it with the default name.

Creating an element

When the diagram is created, you can start creating the appropriate elements.


To create an element in a diagram

  1. In the diagram palette, click the Capability (or another appropriate element) and then click the appropriate place on the diagram pane.
  2. Name the element.



To create an element in the Containment tree

  1. Right-click the C8 package and from the shortcut menu, select Create Element. Search for the Capability (or another appropriate element) and select it.

  2. Name the element.

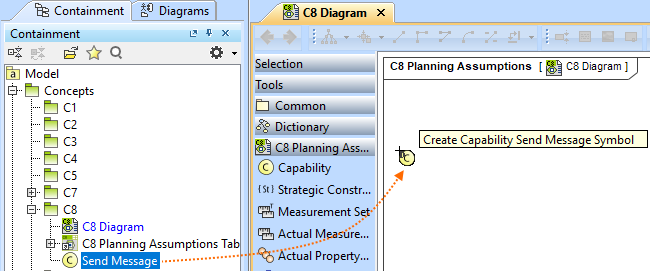

  3. Drag the created element from the Containment tree to the diagram pane.



To create the elements from other resources (e.g. Word, Excel, HTML)

  1. Copy a list in your resource.
  2. In a diagram, press Ctrl+V and from the Paste Special dialog, choose Element.
  3. From the Select Type dialog, choose Security Enclave (or another appropriate element).
For more information about creating the elements from other resources, see Creating elements from other resources.

Creating and applying Strategic Constraints

You can create the Strategic Constraints in the same way as other elements - from the diagram palette or in the Containment tree. See Creating an element. Also, you can create constraints in the selected Capability Specification window.


To create a Strategic Constraint in the Specification window

  1. Select a needed Capability and open its Specification window.
  2. In the Constraints property group, click Create > Strategic > Strategic Constraint.
  3. Specify the name.

  4. In the Specification cell, define the rule.

    The specification (rule) can be defined in English as well as using expressions or formulas (OCL).

Capability is a constrained element that can be a subject of the Strategic Constraint.


To apply Strategic Constraints, do one of the following

  • In the Containment tree, select a Strategic Constraint and drag it on the Capability.
  • In the needed Capability Specification window, go to the Constraints property group. Click the Apply button and from the Select Element window, choose a constraint.
