To open a Strategic Drivers Table Creation wizard, do one of the following
- Right-click the Strategic Motivation Package and select Create Diagram > Strategic Drivers Table.
- In the main toolbar, click Create Diagram and select to create a Strategic Drivers Table.
The Strategic Drivers Table Creation Wizard consists of two steps:

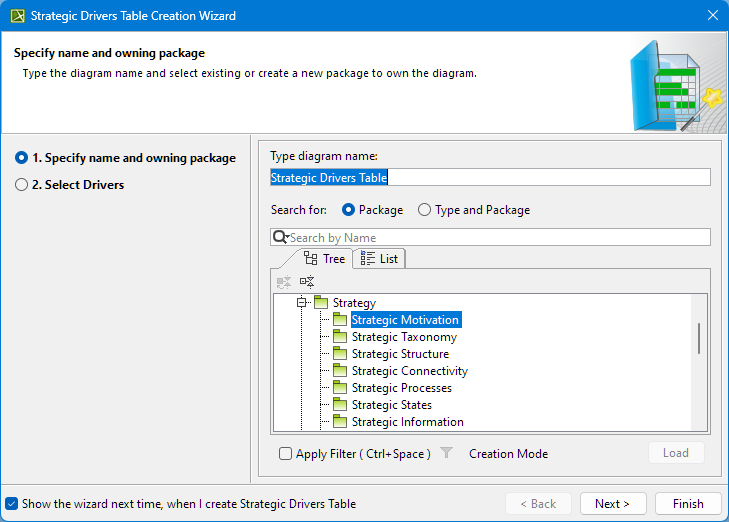

Name and owning package specification
In this step, you can specify the diagram name and select or create the owning package. If you want to create a new owning package, click Creation Mode and then, click the Create Owner button. Also, you can clone an existing package by clicking the Clone button.

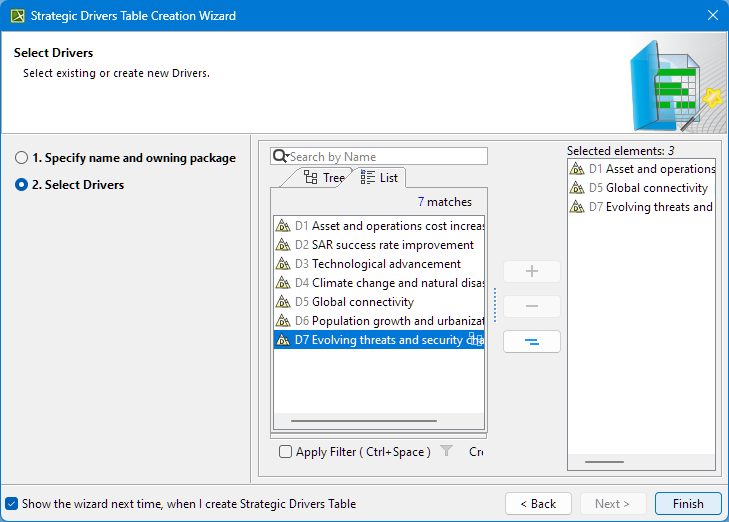

Drivers selection
In this step, you can choose the existing Drivers from the list, or create new Drivers.
To create new Drivers
- Click the Creation Mode button.
- Select an owner for new Drivers.
- Click Create.
- Enter specifications for the new Driver.
- Click Close. A new Driver is added to the Selected elements list.
| Button | Description |
|---|---|
 | Selects a Driver. Alternatively, double-click the Driver. |
 | Removes a Driver. |
 | Removes all Drivers. |
If you do not wish to use this wizard next time, clear the Show the wizard next time, when I create Strategic Drivers Table check box.
To restore the usage of the Strategic Drivers Table Creation Wizard
- Select Options > Environment.
- In the Environment Options dialog select the UAF options group.
- In the General properties, set the Show Strategic Drivers Creation Wizard property value to true.
