The reverse is the opposite of code generation. Existing code can be converted to UML models with the help of the MagicDraw reverse feature. In order to perform a reverse operation, prepare the sets the same way you did for code generation, see Code Engineering Sets.

  • Choose Reverse from the Code engineering sets item shortcut menu.
  • Choose Reverse from the selected set shortcut menu.

The UML model for the component can be reversed in the same way. Simply select the component you are interested in from the browser and click Reverse on its shortcut menu. Models can be reversed without creating a set.

To reverse a model without creating a set

  1. In the main menu, click Tools > Code EngineeringQuick Reverse and then choose from one of the needed options. The Round Trip Set dialog opens.

    This menu item is unavailable from System Analyst and System Engineer perspectives.

  2. Select the files from the Round Trip Set dialog box, Add Files tab.

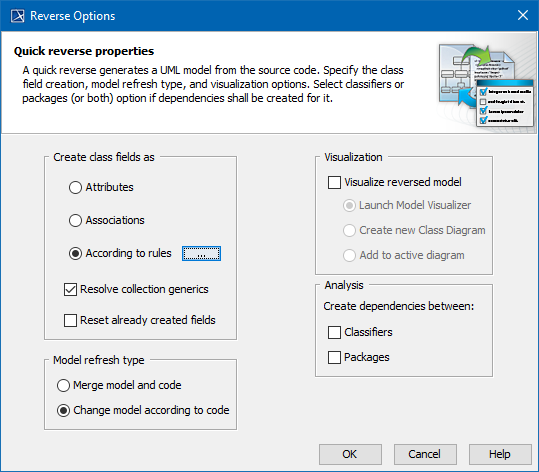

  3. Click OK. The Reverse Options dialog box appears.

The following table outlines Dialog descriptions:

AreaElement nameFunction
Create class fields asAttributesClass fields are represented in a model as attributes.
AssociationsClass fields are represented in a model as association ends.
According to rulesAssociation or Attribute creation on the reverse is the ability to enter rules that help decide if an association or attribute must be created on reverse.
Resolve collection generics

Reverse engineering can create associations when one class has a collection of other classes and uses Java generics (for example, List<String>). If selected, types of collections will be resolved (property type will not be a collection, but a real type).

Predefined container types in Java language properties will be appended by all the same containers in this form: ·java.util.List<$$type$$> where $$type$$ replaced by the value of "type" property when the code is generated.

Reset already created fieldsSelect this option if you want to keep previously created UML representation (attribute or association) for class fields.
Model refresh typeMerge Model and CodeThe model elements are updated by code. Elements that do not exist in the code will not be removed from the model.
Change Model According to CodeThe model will be created strictly by code. Entities in the model that do not match entities in the code will be discarded.
VizualizationVisualize reserved modelClasses created while reversing can be added to a diagram.
Launch Model VisualizerAfter reversing, the Model Visualizer dialog box appears. It will assist you in creating a Class diagram or Sequence diagram (Java only) for newly created entities.
Create new Class DiagramAfter reversing, the Create Diagram dialog box appears. Create a new diagram where the created entities will be added.
Add to active diagramAfter reversing, all created entities will be added to the currently opened diagram.


Create dependencies between

ClassifiersDependencies between classes will be analyzed and created.
PackagesDependencies only between packages will be created.

Method bodies are not parsed on dependency search. Only static information is used.

If you have a code set combined from several files, you may see changes you wish to model without reversing all the code. Only changed files should be reversed. You can do this type of reversing by clicking the Refresh button on the set shortcut menu, or by performing model refresh from the Code Engineering Sets dialog.

Importing JAVA .JAR packages

Apart from reversing code operation, Code Engineering Sets also allows you to import JAVA .JAR files and their Packages using Java Bytecode on the Code Engineering Sets shortcut menu.

To include (or import) a JAVA .JAR package with Java code generation

  1. Create a new UML project or open an existing one.

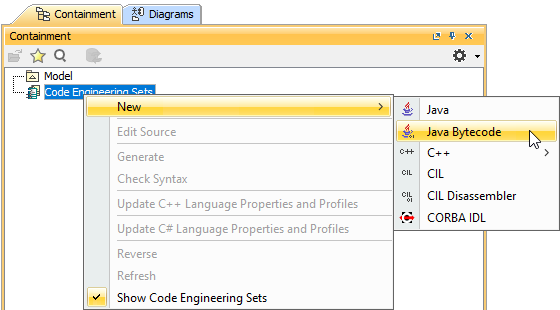

  2. In the Containment tree, right-click Code Engineering Sets. Select New > Java Bytecode.

  3. Name your new Java Bytecode engineering set and click OK. The new Java Bytecode engineering set is created under Code Engineering Sets in the Containment tree.

  4. Right-click your newly created Java Bytecode engineering set. Select Edit.
  5. The Round Trip Set dialog opens. In the Working Directory box, specify the root directory of the .JAR file that you want to import.

  6. In the All files list, select the .JAR file you want to import.


    The file hierarchy of the imported .JAR file in the Containment tree will start from the working directory you set. For example, if you set the working directory as the MagicDraw installation directory, the whole file hierarchy that the imported .JAR file is in the installation directory will be also imported into the Containment tree.

  7. Select and click OK. The imported .JAR file is now in the Containment tree under the Model Package, File View Package, and the rest of the file hierarchy of the imported .JAR file.
