Installing TWCloud using the zip file on Linux

This section explains how to install Teamwork Cloud (TWCloud) on a single server using zip files and set up its configuration file to allow access to the authentication server.

To install TWCloud on Linux by unzipping the file to a directory

1. Verify that 'java –version' is the active version of Java (Oracle JDK 1.8.0_152).

2. Unzip the file to a folder, for example, /opt. Once you have unzipped the file, you will get the folder name /opt/TeamworkCloudSuite.

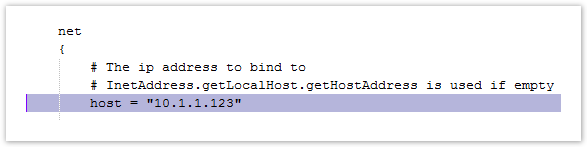

3. Open the server configuration file /opt//TeamworkCloudSuite/configuration/application.conf and edit the hostname, seed node, and host address to use the node's own IP address (see the following example).

   hostname = "10.1.1.123"


   seed-nodes = ["akka.tcp://twcloud@10.1.1.123:2552"]



   host = "10.1.1.123"


   Also, update the following TWCloud configuration to allow access to the authentication server (protocol and ports are defaults).



   # Authentication Server address
   esi.auth {
    # Authentication Server protocol, IP address and port
    # InetAddress.getLocalHost.getHostAddress is used if server is left empty
    protocol = "https"
    server = "10.1.1.123"
    port = "8555"

    }




4. Update theAuthServer configuration: <AuthServer install root>\config\authserver.properties by specifying the IP address instead <serverIP>:

   server.public.host=<serverIP>

   authentication.redirect.uri.whitelist=https://<serverIP>:8111>/twcloud_admin/,https://md_redirect

   twc.server.host= <serverIP>




5. Generate default keypair and certificate by running the following command.


   $ cd /opt/TeamworkCloudSuite/scripts/linux
   $ ./genkey

There are a number of additional steps to run TWCloud as a service on Linux. Before proceeding, make sure the server's log configuration points to the file location that is writable. You can find the log config in the file TeamworkCloudSuite/configuration/logback.xml.

To run TWCloud as a service on Linux

1. Choose or create a user dedicated to running the server, for example, twcloud.
2. Create a file, /etc/twcloud/twcloud-env, and set the required environment variables as the following:


   TWCLOUD_HOME=/opt/TeamworkCloudSuite/
   TWCLOUD_OWNR=root
   JAVA_HOME=/usr/java/jdk1.8.0_152/

   Info

   • TWCLOUD_HOME: to point to the directory where TWCloud was installed.
   • TWCLOUD_OWNR: the user account under which TWCloud will run.
   • JAVA_HOME: a directory containing a Java JDK or JRE.

3. Copy the service startup script into the init.d directory, for example:

   $ sudo cp /opt/TeamworkCloudSuite/scripts/linux/twcloud-svc /etc/init.d

4. To make the service start/stop with system startup/shutdown, use chkconfig command:

   $ sudo chkconfig --add twcloud-svc




To uninstall TWCloud as a service

1. Remove the service from chkconfig management:

      $ sudo chkconfig --del twcloud-svc



2. Remove the service script from the init.d directory by typing the following:

        $ sudo rm /etc/init.d/twcloud-svc

Once you have installed TWCloud, use your administrator account to create user accounts through TWCloud Admin. See Creating user and group for the instructions to add user accounts.
