Description
This matrix defines how the Software Architecture Data are allocated on System Signals.
The Row Scope is a Package, and the Column Scope is a Package or a list of Communication matrices.
Location
The diagrams are created under the System Mapping Package and Data Allocation Package in the Containment tree.
Examples

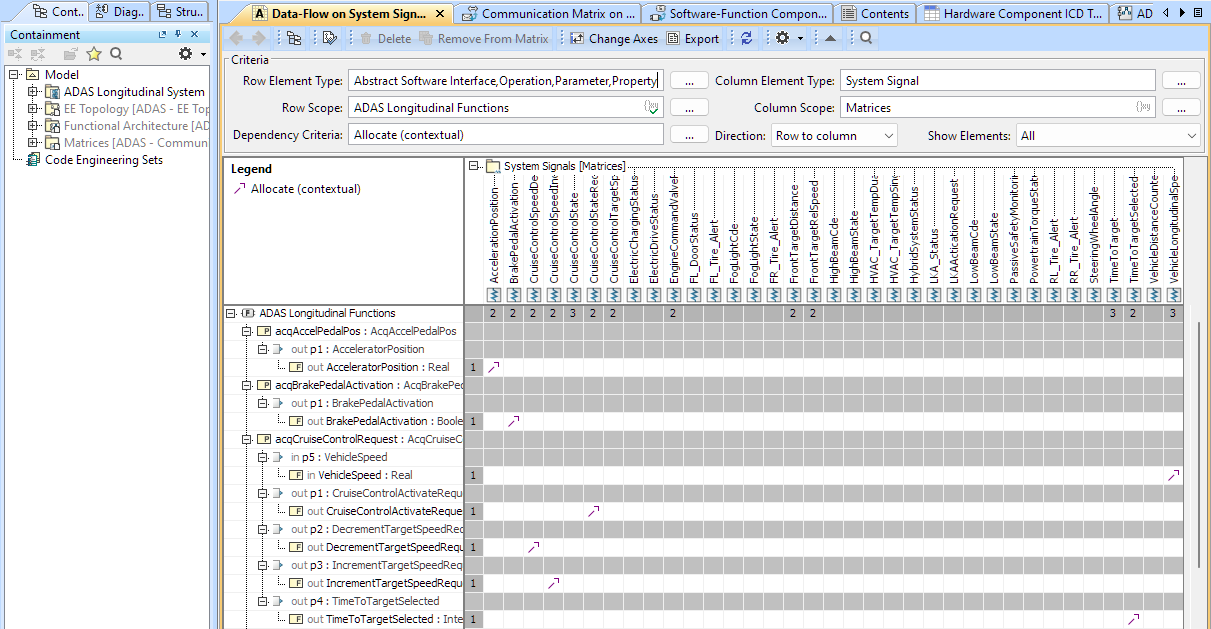

This example is taken from the sample model.
The samples are located in <modeling tool installation directory>samples\CATIA EE Architecture\
