Description
The goal of this table is to show the Bus Signal producer and its consumers. This information is inferred from the Software-to-Hardware allocations in the System Mapping.
The scope of the table is a Communication Matrix.
Location
The diagrams are created under the System Mapping Package in the Containment tree.

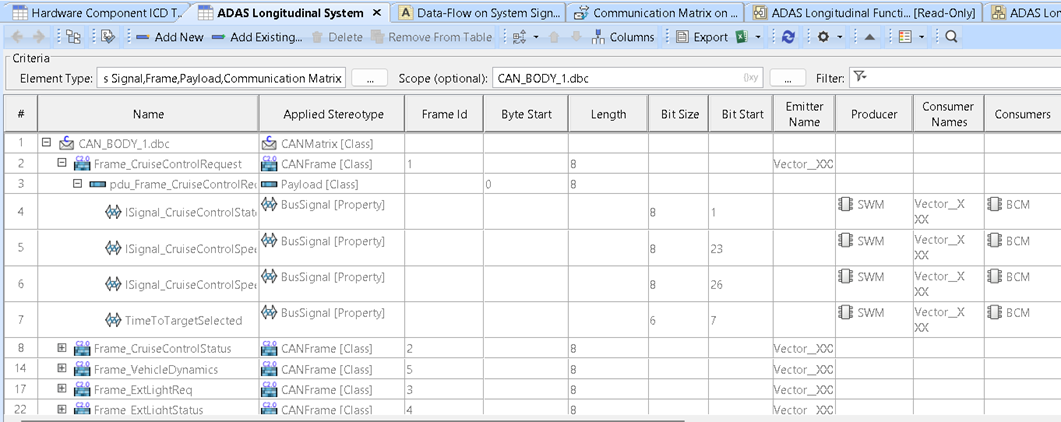

Examples
This example is taken from the sample model.
The samples are located in <modeling tool installation directory>samples\CATIA EE Architecture\
