2024x Version News

SysML Plugin

Released on: November 10, 2023

SysML Plugin 2024x introduces several improvements to Item Flow creation and editing. The  Create / Edit Item Flow  dialog now provides greater clarity and usability, providing a more focused approach to reviewing Activity Pairs connected with existing Activity Edges. In addition, Autowire Parts  and  Delegate Port(s)  commands' availability is changed in the SysML Internal Block Diagram and the SysML Parametric Diagram. Also, the  Delegate Port(s)  command functionality regarding nested ports is now improved to treat each displayed nested port individually.

To download the latest version of the modeling tool, see  Downloading installation files.

Improved Item Flow Creation and Editing

SysML Plugin 2024x brings a more focused approach to reviewing Activity Pairs connected with existing Activity Edges in the  Create / Edit Item Flow dialog, improving overall usability and clarity.

• Now, the second step centers exclusively on reviewing existing Activity Pairs connected by existing Activity Edges, thus:
  • New Activity Pairs cannot be created, and existing Activity Pairs cannot be edited. Because of this, the tool will no longer initiate the automatic generation of new elements or diagrams.
  • The overall synchronization of the dialog's steps is now improved to ensure that all relevant Activity Pairs are systematically gathered based on specified preferences. This results in a well-organized diagram list in the third step, accurately representing selected options.

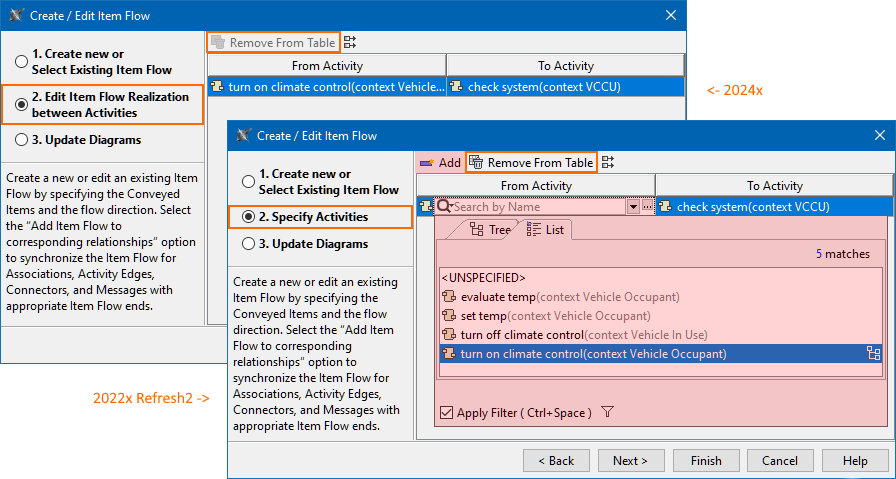

A comparison of some of the changes in the second step of the Create / Edit Item Flow dialog between versions 2024x and 2022x Refresh2.

Learn more about Item Flow creation and editing >>

Other Improvements

• The Tools option group containing Autowire Parts and Delegate Port(s) commands has been removed from the SysML Parametric Diagram toolbar. Both Delegate Port(s) and Autowire Parts commands are no longer available for Constraint Properties and Constraint Parameters in the SysML Internal Block Diagram and the SysML Parametric Diagram.
• Improved Delegate Port(s) command functionality regarding nested ports. Now if the command is called from a part or a port enclosing a nested ports structure, each displayed nested port is treated individually to create delegated connectors and ports. Learn more about automatic delegation >>
