Abbreviation

NRIF

Description

This validation rule checks if there are any Item Flows in the model that are not realized.

Severity

warning

Constrained Element

Item Flow

Solvers

  • Remove from Model - removes the not realized Item Flow from the model.

Example

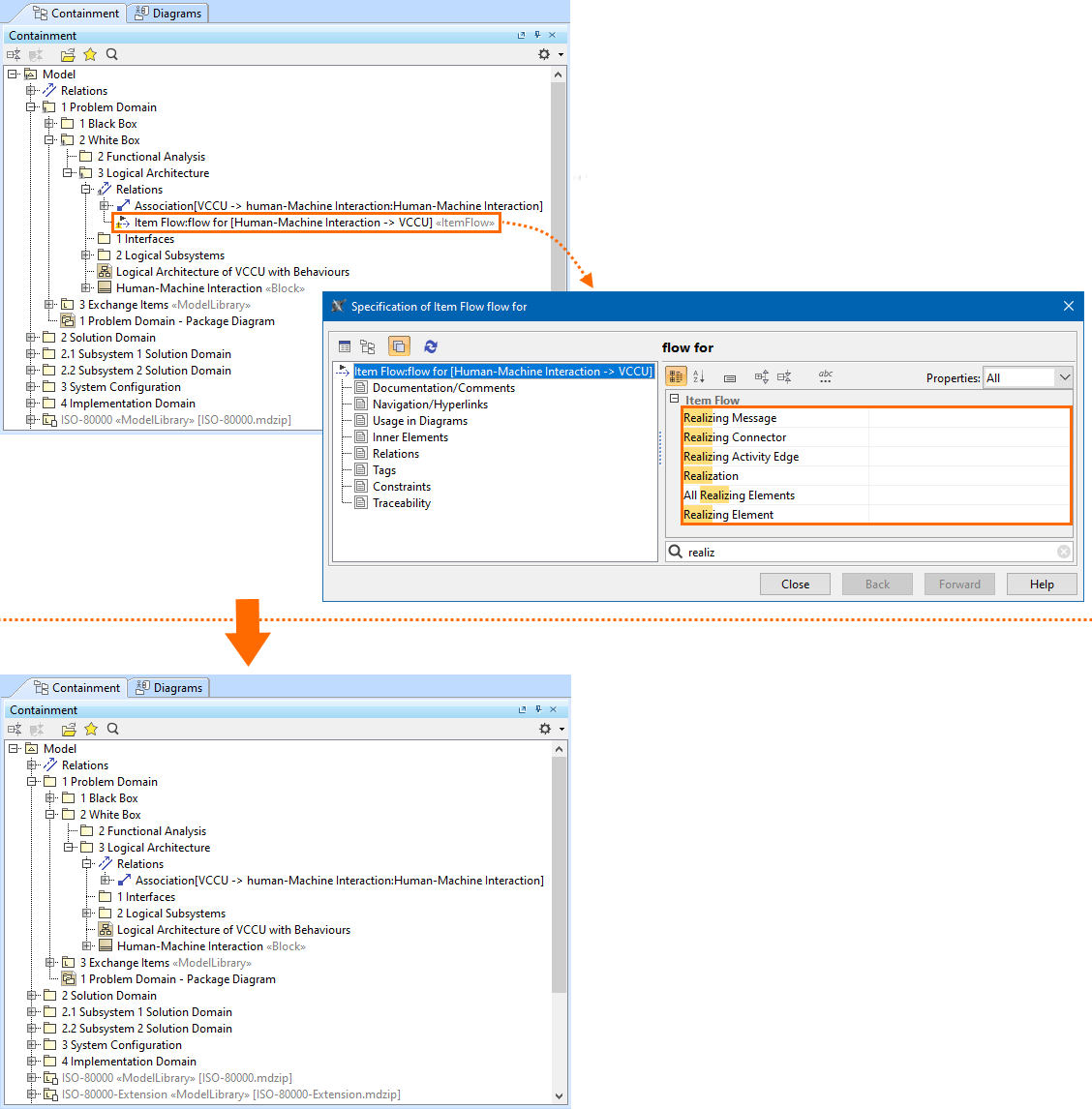

The Item Flow from the Human-Machine Interaction block to the VCCU block is not realized as it does not contain any realizing elements.
The error is resolved via the Remove from Model solver.
